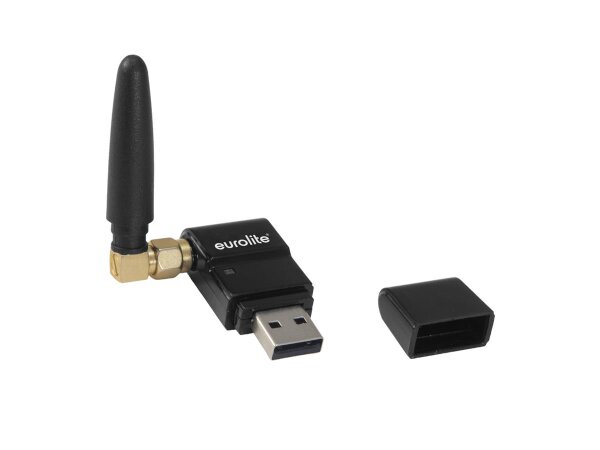

Wireless miniature DMX transceiver 2.4 GHz, phantom powered
- Compact miniature DMX transmitter/receiver for the wireless transmission of up to 512 DMX channels
- User-friendly USB plug with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX receivers and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- Operating range up to 400 m (with line-of-sight)
- Simultaneous operation of up to 6 transmitters, thus control of 6 DMX universes (3072 DMX channels) possible
- Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
- LED indication for functions
- Transceiver to be used as transmitter or receiver
- Requires 5 V phantom power for operation
- 2.4 GHz ISM band - license-free worldwide
| Power supply: |
5 V DC phantom power |
| Carrier frequency: |
2.4 GHz ISM band, 78 channels |
| Modulation: |
GFSK |
| Coverage: |
400 m (line-of-sight) |
| Parallel operation: |
max. 6 transmitters |
| QuickDMX connection: |
USB, type A |
| DMX channels: |
1 universe (512 channels) |
| Dimensions with antenna (L x W x H): |
86 x 40 x 11 mm |
| Weight: |
15 g |
| Number of DMX channels: |
512 |
| IP classification: |
IP20 |
| Color: |
Black |
| Shipping weight: |
0,04 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
2,50 × 11,00 × 8,00 cm |
Product safety information
Manufacturer information:
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
97297 Waldbüttelbrunn, Deutschland
https://www.steinigke.de/support
