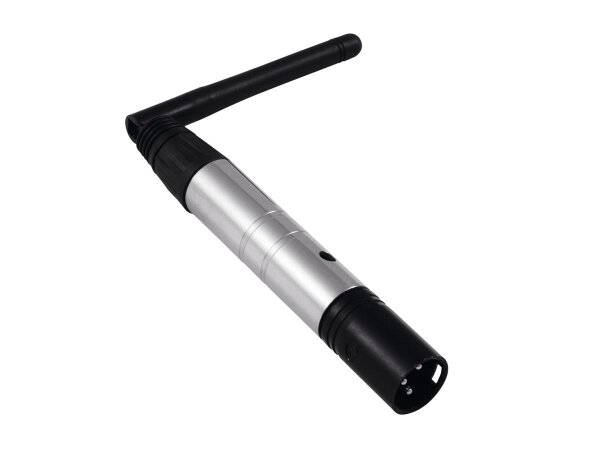

Wireless DMX transmitter 2.4 GHz
- Miniature wireless DMX transmitter for the wireless transmission of up to 512 DMX channels
- User-friendly 3-pin XLR plug (male) with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- Operating range up to 400 m (with line-of-sight)
- Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
- 1 to 512 QuickDMX receivers can be controlled by each transmitter
- Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Powered via included PSU
- 2.4 GHz ISM band - license-free worldwide
| Power supply: |
100-240 V AC, 50/60 Hz ~ |
|
via power unit included in the delivery |
| Carrier frequency: |
2.4 GHz ISM band, 78 channels |
| Modulation: |
GFSK |
| Coverage: |
400 m (line-of-sight) |
| Parallel operation: |
max. 6 transmitters |
| DMX conncector: |
3-pin XLR (male) |
| DMX channels: |
1 universe (512 channels) |
| Dimensions with antenna (LxWxH): |
212 x 18 x 18 mm |
| Weight: |
80 g |
| Shipping weight: |
0.23 kg |
| Shipping weight: |
0,21 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
6,00 × 14,50 × 11,50 cm |
