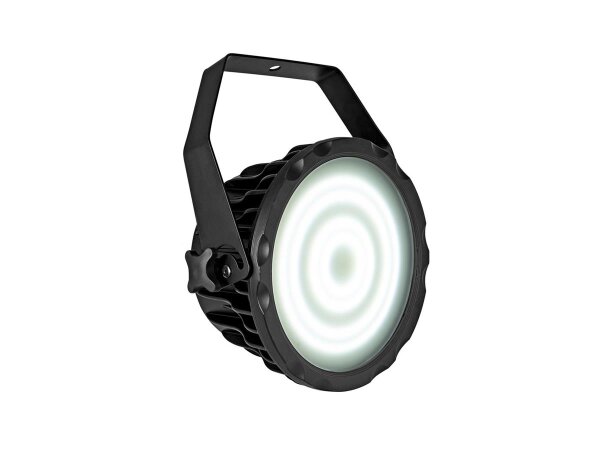

PRO slimline LED strobe with cold white LEDs, 16 separately controllable LED rings and switchable frost
- 840 powerful LEDs 0,5 W SMD 5730 cold white (CW)
16 segments controlled separately
- Frost filter electronic
- Strobe effect
- 27 integrated show programs
- The device is cooled by passive convection cooling
- Control via stand-alone; Master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With Mounting bracket
- LCD display
- Silent operation
- Mains input and output for power linking up to 8 units
- Preprogrammed in Light Captain
- For application areas such as: Clubs/dancing school; Stage; theater; Rental
- Application possibility: Suspended; on tripod
Package contents
- 1 x light effect, 1 x user manual, 1 x power cord
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
150 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output: |
P-Con (gray), mounting version |
| Lamp type: |
LED lamp |
| LED: |
840 x 0,5 W SMD 5730 cold white (CW) |
| Color temperature: |
6300K |
| Flash rate: |
1 - 30 Hz |
| DMX channels: |
2; 3; 5; 7; 17; 23 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
Passive convection cooling |
| Control: |
Stand-alone; Master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: |
Light Captain |
| Attachment system: |
Mounting bracket |
| Display type: |
LCD display |
| Dimensions: |
Width: 30,5 cm
Depth: 14,5 cm
Height: 34,5 cm |
| Weight: |
5,50 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Shipping weight: |
6,15 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
30,00 × 30,00 × 30,00 cm |
