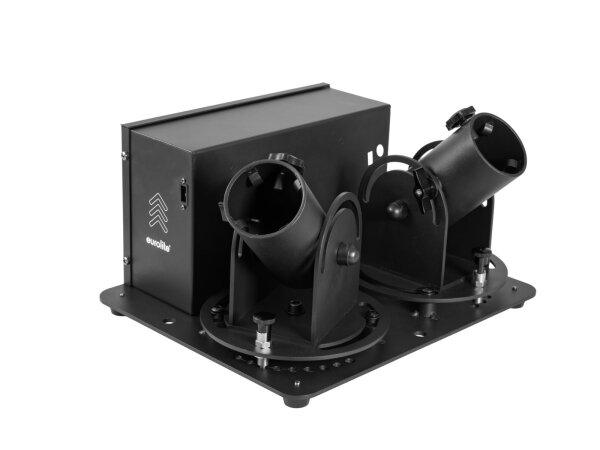

Confetti Double Shot DMX is a compact firing unit for confetti or streamer cannons of various brands. Two confetti and streamer cannons can be fired simultaneously or individually at the push of a button or via DMX signal. An additional safety channel prevents misfires in DMX mode. The projection angles of both cannons can be independently adjusted by 180° and rotated by 90°. The base plate provides a secure footing and M10 flying points for flexible mounting options.
Electric firing unit with 2 channels and DMX control for confetti and streamers
- The electric shooter can be used for confetti or streamer cannons
- Fires 2 cannons simultaneously or individually
- Suitable for electric cannons with 50and 80 cm length
- The shooting angle can be adjusted steplessly
- Control via stand-alone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Monochrome LCD display
- Mains input and output for power linking up to 8 units
- Built with SEETRONIC connector
- The device is cooled by passive convection cooling
- For application areas such as: Wedding/gala/events; stage; theater; rental
- Application possibility: Standing; suspended
Package contents
- 1 x device, 1 x user manual, 1 x power cord
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
Max. 110 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: |
1 x P-Con (gray), mounting version Bypass |
| Device fuse: |
5 x 20 mm, F 3 A fuse replaceable |
| DMX channels: |
3 |
| DMX input: |
1 x 3-pin XLR (M) mounting version |
| DMX output: |
1 x 3-pin XLR (F) mounting version |
| Cooling: |
Passive convection cooling |
| Control: |
Stand-alone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Housing color: |
Black matte |
| Display type: |
Monochrome LCD display |
| USB port: |
1 x type A |
| Diameter mounting holes: |
4 x Ø10mm |
| Use of brands: |
Built with SEETRONIC connector |
| Material: |
Metal, painted |
| Dimensions: |
Length: 32,5 cm
Width: 26,5 cm
Height: 20 cm |
| Weight: |
8,30 kg |
| Shipping weight: |
8,90 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
22,00 × 37,50 × 33,50 cm |
