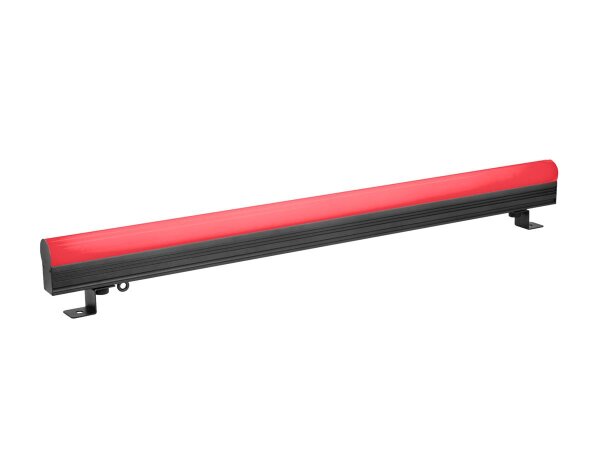

Battery-powered and DMX-controllable pixel tube with RGB color mixing
- Tube with 96 powerful RGB LEDs (3in1) for wide mood lighting
- Subdivided into 32 pixels (illumination units à 3 LEDs) which can be controlled individually by DMX
- Stepless color blend, color change, color fade, dimmer and strobe effect
- Rugged metal housing with brackets
- Battery operation up to 9h depending on program used
- 96 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix)
- 12 integrated Showprograms
- Direct color selection for 17 preset colors
- Can be operated in 3; 5; 8; 48; 96 CH mode
- The device is cooled by passive convection
- Controlling by stand-alone; IR remote control; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- 4 digits 7-segment LED display for easy controlling
Package contents
- 1 x Device, 1 x User manual, 1 x External mains adapter, 1 x Stand, 1 x Remote control, 1 x Battery
| Power supply: |
100-240 V AC, 50/60 Hz
13 V DC |
| Pin configuration: |
Inside + outside - |
| IP classification: |
IP20 |
| Protection class: |
Class III |
| Power connection: |
Mains input via Coaxial power connector (M) power supply cord with AC adapter (provided)
Battery/battery pack |
| Battery pack type: |
1 x lithium ion 11,1 V, 4400 mAh, 48,84 Wh |
| Battery pack: |
Battery operation up to 9h depending on program used
Recharging time 1,5h |
| LED: |
96 x SMD 5050 3in1 TCL RGB (homogenous color mix) |
| Flash rate: |
0 - 20 Hz |
| DMX channels: |
3; 5; 8; 48; 96 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
Passive convection |
| Control: |
Stand-alone; IR remote control; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Housing color: |
Black |
| Display type: |
4 digits 7-segment LED display |
| Dimensions: |
Width: 5 cm
Depth: 13 cm
Height: 1 m |
| Weight: |
2,50 kg |
| Remote control |
| Battery: |
1 x Button cell 3.0 V CR2025 lithium manganese (provided) |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Shipping weight: |
3,00 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
20,00 × 105,00 × 10,00 cm |
