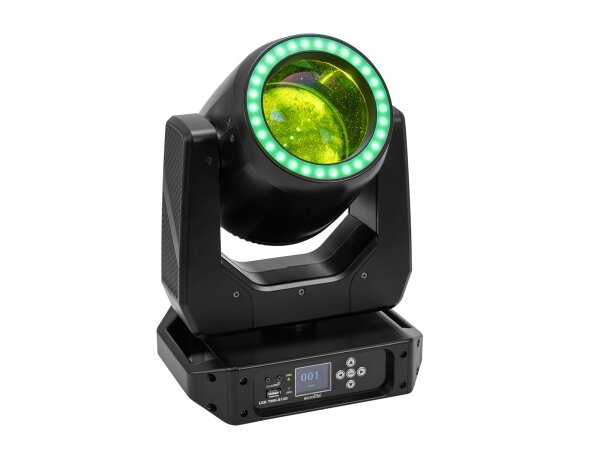

LED moving head beam with hypno ring, color wheel, static gobo wheel, prism and focus
- 1 powerful LED 120 W COB (chip-on-board) cold white (CW)
- 30 powerful LEDs 0,2 W SMD 5050 3in1 TCL RGB (homogenous color mix)
- Positioning within 540° PAN, 240° TILT
- Color wheel; gobo wheel with static gobos; focus motor-driven; frost filter; prism 8-fold rotating
- Dimmer
- Beam effect
- Color wheel with 7 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions
- Gobo wheel with static gobos, 13 gobos und open
shake effect
- 4 integrated show programs
- The device is cooled by cooling fan at the base; cooling fan at the Head
- Control via stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); master/slave function
- Flicker-free
- DMX fail mode (hold; zero values)
- With a beam angle of 2°
- With omega bracket
- Multicolor LCD display
- 2 Rugged carrying handles
- 4 rubber feet
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; stage; mobile djs / entertainer; rental
- Application possibility: Standing; suspended
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Preprogrammed in Light Captain
Package contents
- 1 x moving light, 1 x power cord, 1 x omega bracket, 1 x safety eyelet, 1 x user manual
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
170 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Cable construction: |
3 x 1,0 mm² H05VV-F |
| Cable length: |
1,1 m |
| Power output: |
P-Con (gray), mounting version |
| Fuse: |
5 x 20 mm, T 2 A fuse replaceable |
| Lamp type: |
LED lamp |
| LED type: |
1 x 120 W COB (chip-on-board) cold white (CW)
30 x 0,2 W SMD 5050 3in1 TCL RGB (homogenous color mix) |
| Max. TILT movement: |
240° exact positioning (16 bit resolution) auto position correction (feedback) |
| Max. PAN movement: |
540° exact positioning (16 bit resolution) auto position correction (feedback) |
| Flash rate: |
1 - 20 Hz |
| Equipment: |
Color wheel; gobo wheel with static gobos; focus motor-driven; frost filter; prism 8-fold rotating |
| Color generation: |
Color wheel with 7 dichroic filters plus open
Half colors selectable, Rainbow effect with adjustable speed in both directions |
| Gobos: |
Gobo wheel with static gobos, 13 gobos und open
Shake effect |
| DMX channels: |
21 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
1 x cooling fan at the base
1 x cooling fan at the Head |
| Control: |
Stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); master/slave function |
| Preprogrammed in: |
Light Captain |
| Projection: |
Flicker-free |
| DMX fail mode: |
Hold; zero values |
| Beam angle: |
2° |
| Beam angle (1/2 peak): |
Beam 2°
Ring 120° |
| Beam angle (1/10 peak): |
Beam 2°
Ring 120° |
| Color temperature: |
8500K |
| Housing color: |
Black |
| Attachment system: |
Omega bracket |
| Display type: |
Multicolor LCD display |
| Status LED: |
DMX, fault |
| USB port: |
Type A |
| Carrying handle: |
2 pc/pcs |
| Transport aid: |
4 x rubber feet |
| Material: |
Plastic |
| Dimensions: |
Width: 26,0 cm
Depth: 23,5 cm
Height: 37,5 cm |
| Weight: |
6,95 kg |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Shipping weight: |
7,80 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
34,00 × 43,00 × 30,00 cm |
