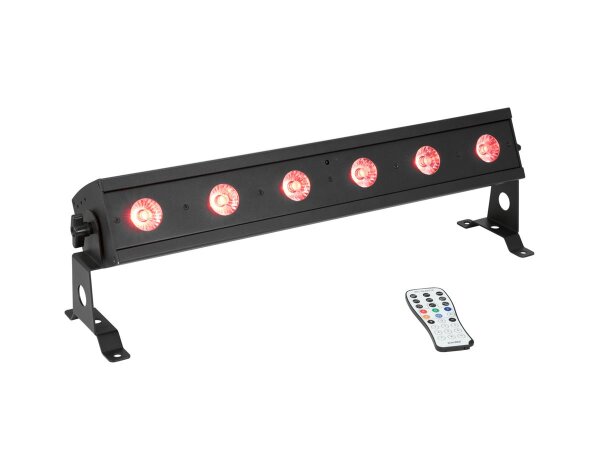

Battery-powered light effect bar with RGBW LEDs and IR remote control
- Cordless, flexible and versatile
- Equipped with 6x 8 W QCL LED in Red, Green, Blue and White
- Battery operation up to 15 hours (depending on program used)
- Recharging time 3 hours
- Energy saving mode
- Auto, music, master/slave and DMX mode
- Sound-control via built-in microphone with adjustable microphone sensitivity
- Supports QuickDMX - the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX receivers (accessory)
- Built-in auto and music show programs
- Direct color selection for 19 preset colors
- Stepless RGBW color mixture, color change, color fade, dimmer, strobe effect with variable speed, sound control
- Addressing and setting via control panel with 4-digit LED display
- Convenient wireless control via included IR remote control Eurolite IR-7
- Swivel mounting brackets
- IEC terminals for power linking up to 8 units
- Switch-mode power supply for operation between 100 and 240 volts
- LED: 6 x high-power 8 W 4in1 QCL RGBW (homogenous color mix)
- Can be operated in 3; 4; 4; 6; 8 CH mode
- The device is cooled by passive convection
- Controlling by Stand-alone; IR remote control; DMX; QuickDMX via USB (optional); Master/slave function; Sound to light via Microphone
- Flicker-free projection
| Power supply: |
100-240 V AC, 50/60 Hz |
| IP classification: |
IP20 |
| Protection class: |
Class I |
| Power connection: |
Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| Power output: |
IEC connector (F) mounting version |
| Fuse: |
T 0,5 A Fuse replaceable |
| Battery pack type: |
1 x lithium ion 22,2 V, 2200 mAh, 48,84 Wh |
| Lamp type: |
LED lamp |
| LED: |
6 x high-power 8 W 4in1 QCL RGBW (homogenous color mix) |
| Flash rate: |
0 - 20 Hz |
| DMX channels: |
3; 4; 4; 6; 8 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
Passive convection |
| Control: |
Stand-alone; IR remote control; DMX; QuickDMX via USB (optional); Master/slave function; Sound to light via Microphone |
| Beam angle: |
18° |
| Beam angle (1/2 peak): |
18° |
| Beam angle (1/10 peak): |
35° |
| Housing color: |
Black |
| Display type: |
4 digits 7-segment LED display |
| Dimensions: |
Length: 54,5 cm
Depth: 13,8 cm
Height: 15,7 cm |
| Weight: |
2,60 kg |
| Remote control |
| Battery: |
1 x Button cell 3.0 V CR2025 lithium manganese (provided) |
| Legal specifications |
| Ecodesign regulation: |
yes |
| Special product: |
Not designed for household room illumination |
| intended use: |
show effect lighting |
| Shipping weight: |
3,05 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
17,00 × 56,00 × 15,00 cm |
Product safety information
Manufacturer information:
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
97297 Waldbüttelbrunn, Deutschland
https://www.steinigke.de/support
info@steinigke.de
