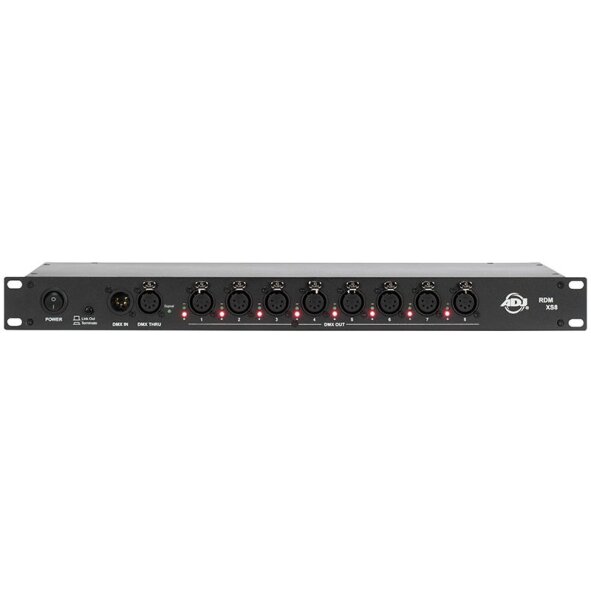

The ADJ Lighting RDM XS8 is a 19-inch rack mount, 8-way DMX and RDM data splitter. With one (1) 5-pin input, one (1) 5-pin thru and eight (8) 5-pin outputs, the RDM XS8 makes running DMX cables easier and more efficient.
The ADJ Lighting RDM XS8 is a versatile and compact solution for streamlined DMX512 and RDM signal distribution. Designed for seamless integration into your lighting setup, this data splitter ensures reliable and convenient installation into a 19-inch rack mount cabinet. Its slim one rack configuration includes 1x indoor 5-pin XLR input, 1x indoor 5-pin XLR thru, 8x indoor 5-pin XLR outputs, plus a Link Out Termination Switch and a DMX/RDM Protocol Switch.
SPECIFICATIONS:
Protocols:
PHYSICAL:
- • 19" Rack Mount (1 rack space)
- 1x Indoor 5pin XLR Input
- 1x Indoor 5pin XLR Thru
- 8x Indoor 5pin XLR Outputs
- Link Out Termination Switch
- DMX / RDM Protocol Switch
DIMENSIONS / WEIGHT:
- Length: 152.4mm
- Width: 482mm
- Height: 44mm
- Weight: 2.21kg
ELECTRICAL:
- AC Input: 100-230V 50/60Hz
- Power Consumption: 3.3W @ 230V
- Power Input Protection: Fuse, T1.25A/250 (5.2x20mm)
THERMAL:
- Ambient Operational Temperature: -20°C to 45°C
- Storage Temperature: 25°C
APPROVALS / RATINGS:
