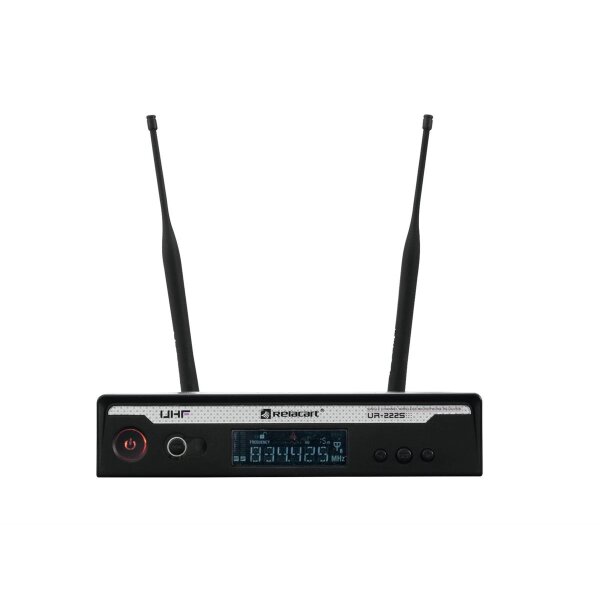

RELACART UR-222S 1-Channel UHF Receiver

Item number: 13055205

Category: Radio Microphones


179,00 €

including 19% VAT. , no shipping costs (Paket)

Recommended retail price: 213,01 €
(You save 15.97%, that is 34,01 €)
12 piece In stock

Shipping time: 1 - 3 workdays

piece


Multifrequency wireless receiver with true diversity
  • Multifrequency wireless receiver with high-quality true diversity reception
  • 2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
  • 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
  • Parallel operation of up to 9 systems is possible without any interference
  • Pilot tone technology (PLL) for interference-free reception
  • Operation range with line of sight approx. 80 meters
  • Automatic frequency scan (AFS) finds interface-free channels
  • Infrared interface for easy and error-free channel transfer to transmitters via infrared signal
  • LCD for battery status of the transmitter, antenna A/B, RF reception level, AF audio level and frequency
  • XLR and 6.3 mm jack output
  • 2 detachable BNC antennas allow for use with the R-14D antenna divider
  • Matching transmitters optionally available: hand-held microphone (UH-222S), pocket transmitter (UT-200), boundary microphone (UB-200)
  • Delivery includes practical transport bag with jack cable and power unit
  • Durable metal housing
  • 483 mm rack installation possible with supplied mounting brackets
  • License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
System:True diversity, 1 channel
Carrier frequency:UHF 823-832 MHz and 863-865 MHz
Receiving frequencies:90
10 frequency banks with up to 10 preset frequencies each
Switching bandwidth:11 MHz
Deviation:± 45 kHz
Frequency stability:± 0.0005 %
T.H.D.:<0.7 % at 1 kHz
S/N ratio:>105 dB
Modulation method:FM
Coverage:80 m (with line-of-sight)
Frequency response:45-18000 Hz
Sensitivity:5 dBµV (S/N >60 dB at 25 deviation)
Audio output:XLR, bal.
6.3 mm jack, unbal.
Antenna inputs:2 x BNC (supply 8 V/150 mA)
Power supply:12 V DC, 500 mA
via supplied power unit connected to 100-240 V AC, 50/60 Hz ~
Power consumption:12 W
Dimensions:205 x 43 x 220 mm
Rack installation with 1 U
with supplied mounting brackets
Weight:1.2 kg
Shipping weight:1.50 kg

Shipping weight:1,50 Kg
Dimensions(LxWxH) ( length × width × height ): 6,50 × 39,50 × 30,50 cm
