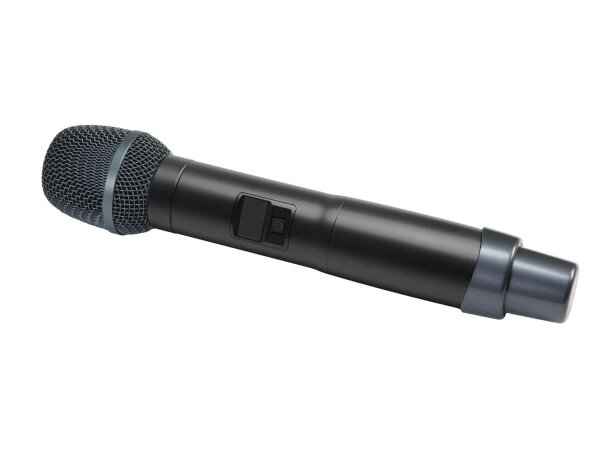

Hand-held microphone with PLL multifrequency transmitter
- Dynamic hand-held microphone with UHF pilot tone technology (PLL)
- Ergonomic aluminum alloy housing, applicable for touring
- Matches receiver UR-222S
- 2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Infrared interface for easy and error-free synchronization with the receiver via infrared signal
- Operation range approx. 80 meters
- OLED display for battery status and frequency
- Mute function
- RF output power Hi/Low adjustable
- Directly compatible with Shure
| Type: |
Dynamic |
| Directivity pattern: |
Cardioid |
| Carrier frequency: |
UHF 823-832 MHz and 863-865 MHz |
| Transmitting frequencies: |
90 |
|
10 frequency banks with up to 10 preset frequencies each |
| Switching bandwidth: |
11 MHz |
| Deviation: |
± 45 kHz |
| Modulation: |
FM |
| Coverage: |
80 m (with line-of-sight) |
| Power supply: |
2 x 1.5 V battery (type AA) |
| Current consumption: |
approx. 120 mA |
| Battery life: |
approx. 8 hours |
| Dimensions: |
52 x 255 mm |
| Weight: |
235 g |
| Shipping weight: |
0.40 kg |
| Shipping weight: |
0,42 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
7,50 × 29,00 × 11,50 cm |
