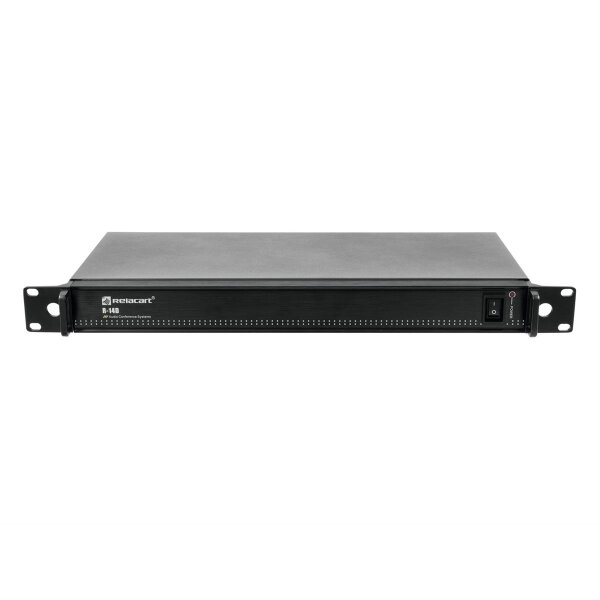

Antenna distributor
- Active antenna distributor for operating up to four UHF receivers on one pair of multi-antennas
- Improves the interference safety and enlarges the range
- Replaces the respective antennas and PSUs of the individual receivers
- Up to five antenna distributors R-14D can be connected among each other for use of 16 microphones in total
- Low-voltage outputs for supplying four UHF receivers, incl. matching connection cables
- Use in the entire UHF frequency range (470 - 900 MHz)
- All antenna connections via BNC jacks
- Rack installation with 1 unit
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
60 W |
| Frequency range: |
470-900 MHz |
| Impedance: |
50 ohms |
| Antenna connectors: |
2 x BNC |
| Receiver outputs: |
8 x BNC |
| Low-voltage outputs: |
4 x 12 V DC |
| Dimensions distributor: |
482 x 242 x 45 mm |
|
Rack installation with 1 U |
| Weight: |
2.6 kg |
| Shipping weight: |
4.09 kg |
| Shipping weight: |
4,00 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
8,50 × 59,00 × 43,00 cm |
