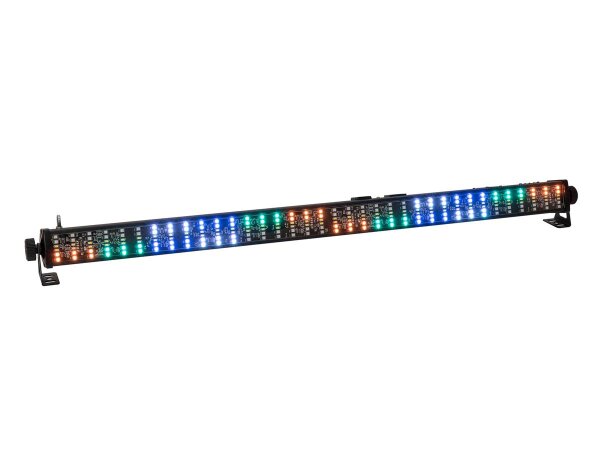

LED light bar with wide beam SMD LEDs (RGB/CW) and pixel control
- Individually controllable pixel groups
- Stepless color blend, color change, running light, dimmer and strobe effects
- Background color macros controllable via DMX
- Mains input and output for power linking up to 8 units
- 144 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix)
- 72 powerful LEDs SMD 5730 cold white (CW)
- 16 integrated Showprograms
- Can be operated in 6; 16; 84 CH mode
- The device is cooled by passive convection cooling
- Controlling by stand-alone; Master/slave function; Sound to light via Microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 120°
- With Mounting bracket
- 4 digits 7-segment LED display
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
55 W |
| IP classification: |
IP20 |
| Protection class: |
Class I |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power output: |
IEC connector (F) mounting version |
| Fuse: |
5 x 20 mm, T 2 A Fuse replaceable |
| Lamp type: |
LED lamp |
| LED: |
144 x SMD 5050 3in1 TCL RGB (homogenous color mix)
72 x SMD 5730 cold white (CW) |
| Flash rate: |
10 Hz |
| DMX channels: |
6; 16; 84 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
Passive convection cooling |
| Control: |
Stand-alone; Master/slave function; Sound to light via Microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Beam angle: |
120° |
| Beam angle (1/2 peak): |
120° |
| Housing color: |
Black |
| Attachment system: |
2x Mounting bracket |
| Display type: |
4 digits 7-segment LED display |
| Dimensions: |
Length: 1,085 m
Depth: 6,5 cm
Height: 9,0 cm |
| Weight: |
1,63 kg |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Shipping weight: |
1,94 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
11,00 × 103,00 × 12,00 cm |
Product safety information
Manufacturer information:
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
97297 Waldbüttelbrunn, Deutschland
https://www.steinigke.de/support
info@steinigke.de
