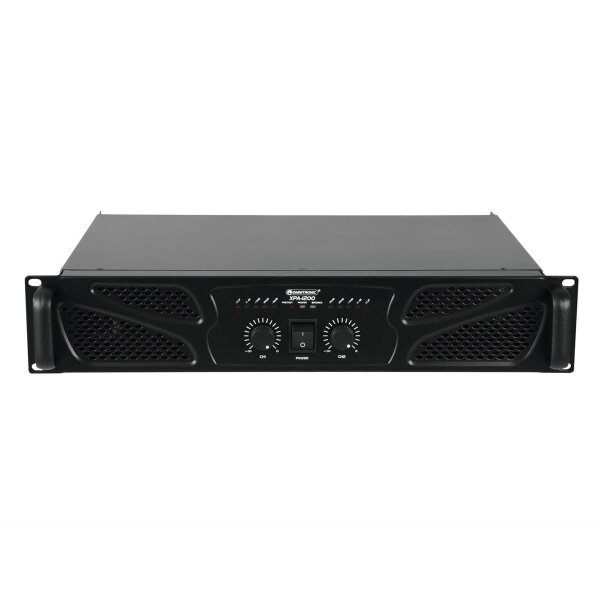

PA amplifier with integrated limiter
- 2 operating modes can be selected (stereo or bridged)
- Limiter, switchable
- Speaker switch-on delay
- 2 level controls
- Each channel with LED for activated protective circuit (protect) and output meter with clip LED
- Complete protection set against short-circuit, overheat, DC voltage, power on/off transients
- Groundlift switch against humming
- Fan cooling
- Signal inputs via XLR or 6.3mm jack connectors
- Speaker outputs via lockable speaker jacks and pairs of screw terminals
- Additional Speaker plug for 8-ohm bridge operation
- Class AB circuitry
- Rack installation with 2 units
| Power supply: |
115/230 V AC, 50/60 Hz |
| Power consumption: |
800 W (1/8 power) |
| Power output sine: |
|
| Stereo 4 ohms |
2 x 610 W |
| Stereo 8 ohms |
2 x 420 W |
| 8 ohms bridged |
1 x 1200 W |
| Frequency range: |
20-20000 Hz, ± 1 dB |
| Damping factor: |
>350 |
| Distortion factor: |
0.5 % |
| Slew rate: |
20 V/µsec |
| S/N ratio: |
>95 dB |
| Input sensitivity: |
1.4 V |
| Input impedance: |
20 kohms (balanced), 10 kohms (unbalanced) |
| Input voltage: |
max. 21 dBV/9V |
| Input connectors: |
2 x XLR, 2 x 6.3 mm jack |
| Output connectors: |
2 x speaker, 1 x speaker (bridge), 2 x pairs of screw terminals |
| Control elements: |
power switch, level control per channel, mode switch (stereo/bridged), limiter selector, groundlift selector |
| LED indicators: |
bridged, protect, and 5-fold output meter with clip LED (per channel) |
| Protection circuits: |
short-circuit, overheat, DC voltage, power on/off transients, softstart |
| Construction: |
steel chassis with aluminum front panel |
| Dimensions (DxWxH): |
354 x 483 x 103 mm (19", 2 U) |
| Weight: |
12.4 kg |
| Shipping weight: |
14.00 kg |
| Shipping weight: |
12,80 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
15,00 × 53,00 × 42,00 cm |
