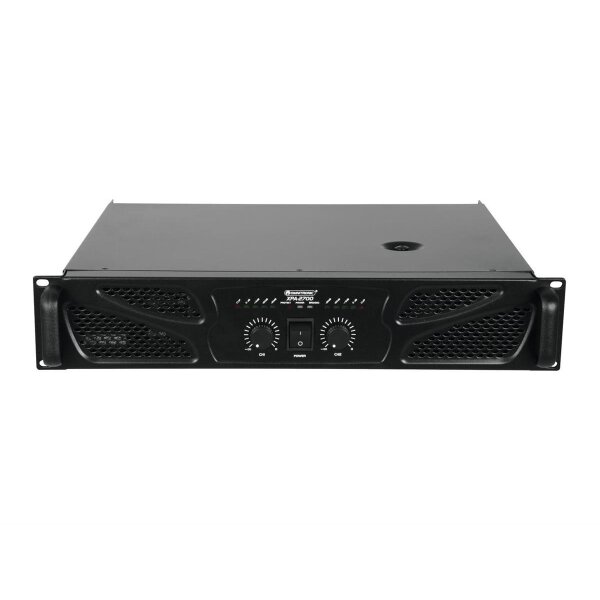

PA amplifier with integrated limiter
- 3 operating modes can be selected (stereo, parallel or bridged)
- Input sensitivity adjustable
- Speaker switch-on delay
- 2 level controls
- Each channel with LED for activated protective circuit (protect) and output meter with clip LED
- Complete protection set against short-circuit, overheat, DC voltage, power on/off transients
- Fan cooling
- Signal inputs via XLR or RCA connectors
- Speaker outputs via lockable speaker jacks and pairs of screw terminals
- Additional Speaker plug for 8-ohm bridge operation
- Class H circuitry
- Rack installation with 2 units
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
700 W (1/8 power) |
| Power output sine: |
|
| Stereo 4 ohms |
2 x 1350 W |
| Stereo 8 ohms |
2 x 1080 W |
| 8 ohms bridged |
1 x 2700 W |
| Frequency range: |
20-20000 Hz, ± 1 dB |
| Damping factor: |
>200 |
| Distortion factor: |
0.5 % |
| Slew rate: |
>10 V/µsec |
| S/N ratio: |
>100 dB |
| Input sensitivity: |
0.775 V / 1.4 V, switchable |
| Input impedance: |
20 kohms (balanced), 10 kohms (unbalanced) |
| Input connectors: |
2 x XLR, 2 x RCA |
| Output connectors: |
2 x speaker, 2 x pairs of screw terminals |
| Control elements: |
power switch, level control per channel, mode switch (stereo/bridged), limiter selector, groundlift selector |
| LED indicators: |
bridged, protect, and 5-fold output meter with clip LED (per channel) |
| Protection circuits: |
short-circuit, overheat, DC voltage, power on/off transients, softstart |
| Construction: |
steel chassis with aluminum front panel |
| Dimensions (DxWxH): |
415 x 483 x 103 mm (19", 2 U) |
| Weight: |
17.9 kg |
| Shipping weight: |
19.50 kg |
| Shipping weight: |
17,00 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
14,50 × 53,00 × 48,00 cm |
