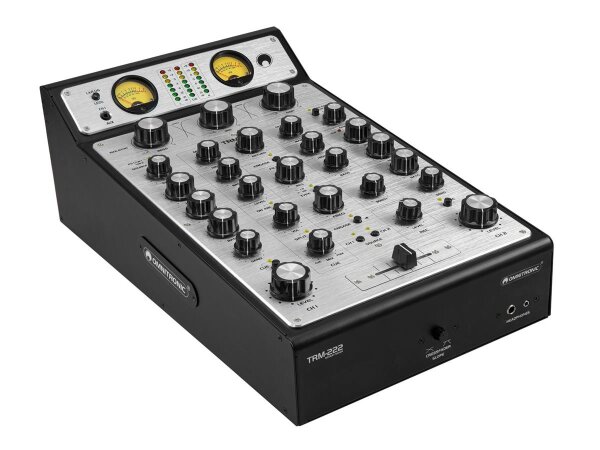

Rotary mixer with 3-band frequency isolator, VCR filter and FX loop
- Filter section with resonance and sweep control for creative sound shaping
- 3-band master frequency isolator with vintage ALPS potentiometers (Blue Velvet RK27)
- Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing
- 2 stereo input channels with gain control, clip LED, 3-way equalizer, FX Send and phono/line switching
- 2 microphone input channels with gain control, 2-way equalizer on air switch
- 2 effects send/return paths
- Dual analog VU meter
- Direct outputs for Timecode applications
- High-grade components ensure long life and excellent sound quality
- Booth output with separate 2-way equalizer and level control
- Record output, independent of the master
- Fully assignable VCA crossfader with adjustable curve
- Outputs: master and booth (XLR/RCA L/R), record (RCA L/R), master insert send/return (RCA L/R), FX in/out (stereo jack)
- Desktop console housing
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
15 W |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range: |
20 - 20000 Hz |
| S/N ratio: |
>100 dB |
| THD: |
<0,05 % at 1 kHz |
| Gain: |
Line -12 dB to +12 dB
Phono -40 dB to +5 dB
FX 20 dB
Microphone 55 dB |
| DJ filter: |
Routable: LPF, HPF, |
| Isolators: |
Master Gain:- ? bis +9
Low/mid 300 Hz, 18db/oct , Butterworth
Mid/high 4000 Hz, 18db/oct , Butterworth |
| Control elements: |
Power switch, source selector, Crossfader, Crossfader selector switch, Crossfade curve switch; Cue mix split function, tone control |
| Status LED: |
Power, master level meter, clip, CUE |
| Connections: |
Input: line via 2 x stereo RCA
Input: line/phono via 2 x stereo RCA
Input: Microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: AUX returns via 2 x 6.3-mm-jack (bal.)
Output: Timecode via 2 x stereo RCA
Output: headphones via 2 x 6.3 mm jack socket (stereo) mounting version
Output: headphones via 1 x 3.5 mm jack (stereo) mounting version
Output: rec. via 1 x stereo RCA
Output: booth via 2 x 3-pin XLR
Output: booth via 1 x stereo RCA
Output: master via 2 x 3-pin XLR
Output: master via 1 x stereo RCA
Output: AUX sends via 2 x 6.3-mm-jack (bal.) |
| Channels: |
Input chanel: 2 x stereo with Line-Line/Phono switch via RCA, channel control via Rotary, 3-band tone control EQ, source selector, gain control, CUE switch, FX routing switch
Microphon chanal: 1 x mono via Combination socket (XLR/jack), channel control via Rotary, 2-band tone control EQ, ON AIR switch,
Master output: 1 x stereo via XLR or RCA, channel control via Rotary
Booth output: 1 x stereo via XLR or RCA, channel control via Rotary, 2-band tone control EQ
Rec. output: 1 x stereo via RCA, channel control via Rotary
Headphones output: stereo via Jack, channel control via Rotary |
| Max. level: |
Output: +21 dBu |
| Material: |
Metal; aluminum |
| Housing design: |
Desktop console housing |
| Dimensions: |
Width: 45 cm
Depth: 26 cm
Height: 16 cm |
| Weight: |
5,50 kg |
| Shipping weight: |
7,10 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
21,50 × 55,50 × 34,50 cm |
