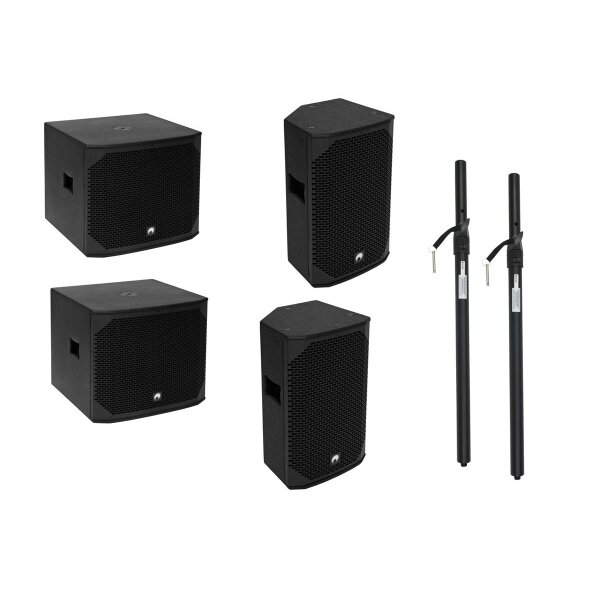

11039046 Omnitronic AZX-118A PA Subwoofer active 400W
Active 18" PA bassreflex subwoofer, 400 W
- 46 cm (18") bass speaker with 76 mm voice coil
- Class D amplifier with 400 W
- XLR inputs and parallel outputs L/R
- XLR output L/R with high-pass filter
- Adjustable crossover frequency 80-200 Hz
- Phase reversal switch
- Limiter for overload protection
- Limit, signal and power LED
- M20 metal flange for top speakers
- Carrying handles
- Housing made of 15 mm MDF
- Scratch-resistant lacquer surface
- Impact-resistant steel grille with acoustic foam
11039029 Omnitronic AZX-212A 2-Way Top active 250W
Active speaker with 12" woofer, 1.35" titanium driver, LF 200 W RMS, HF 50 W RMS
- 2-way bassreflex enclosure with 30 cm woofer and 3.5 cm titanium driver
- Class D biamp amplifier (LF 200 W, HF 50 W)
- Balanced signal input XLR/6.3 mm jack, switchable mic/line
- XLR output for linking further active speaker systems
- Master control with 2-band EQ
- HF adjustment -4 dB, -2 dB, 0 dB
- Limiter for overload protection
- Limit, signal and power LED
- Housing made of 15 mm MDF
- Scratch-resistant lacquer surface
- Carrying handles
- Impact-resistant steel grille with acoustic foam
- M10 threaded inserts for suspended installation
- Dual flange with 0° and 5° tilt angle enables flexible positioning
- Applications: standing, as monitor, on a subwoofer or speaker stand, suspended
- Master equalizer: 1 x 2 band tone control
60004558 Omnitronic Distance Tube Subwoofer/Satellite M20
Variable distance tube
- Connecting tube for satellite systems
- Locking screw and bolt
- Powder-coated steel version
- Thread: M20
| Weight: |
115,30 kg |
| 11039046 Omnitronic AZX-118A PA Subwoofer active 400W |
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
650 W |
| Woofer: |
(18") approx 46 cm |
| Number of woofers: |
1 pc/pcs |
| Frequency range: |
40 - 250 Hz |
| Sensitivity: |
95 dB (1W/1m) |
| Power connection: |
Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| Material: |
MDF (Medium-density fibreboard) |
| Width: |
66,5 cm |
| Depth: |
66,5 cm |
| Weight: |
33,65 kg |
| Amplifier power: |
400 W RMS |
| Signal input: |
XLR L/R |
| Parallel output: |
XLR L/R |
| High-pass output: |
XLR L/R |
| Crossover frequency: |
80-200 Hz |
| Acoustic loading: |
Bassreflex |
| Amplifier: |
Class D |
| 11039029 Omnitronic AZX-212A 2-Way Top active 250W |
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
650 W |
| Woofer: |
(12") approx 30 cm |
| Number of woofers: |
1 pc/pcs |
| Frequency range: |
55 - 20000 Hz |
| Sensitivity: |
95 dB (1W/1m) |
| Power connection: |
Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| Material: |
MDF (Medium-density fibreboard) |
| Width: |
43 cm |
| Height: |
67 cm |
| Depth: |
40,5 cm |
| Weight: |
19,15 kg |
| Amplifier power: |
200 W RMS LF, 50 W RMS HF |
| LF speaker: |
30 cm bass/mids (12") with 50 mm voice coil |
| HF speaker: |
3,5 mm compression driver (1.35") |
| Input mic/line: |
combination XLR/6.3 mm jack, bal. |
| Output line: |
XLR, bal. |
| 60004558 Omnitronic Distance Tube Subwoofer/Satellite M20 |
| Maximum carrying capacity: |
30 kg |
| Height: |
maximum: 1,35 m
minimum: 0,75 m |
| Color: |
Black |
| Attachment: |
Flange system 35mm |
| Thread: |
M20 |
| Weight: |
1,02 kg |
| Tube diameter: |
41/35 mm |
| Shipping weight: |
113,10 kg
|
