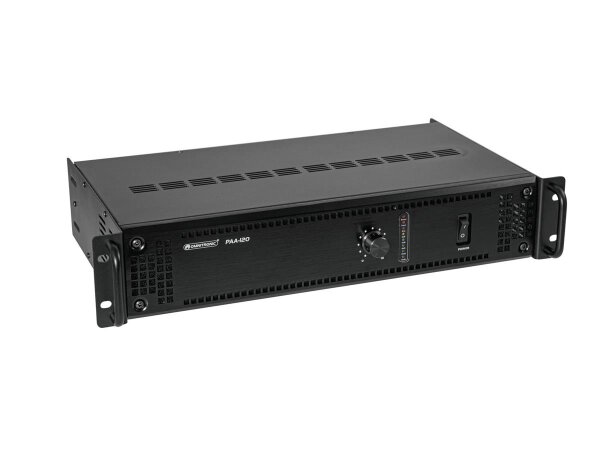

PA power amplifier, 120 watts
- 1 line input (XLR and 6.3 mm jack)
- 1 feed-through output (optionally XLR or 6.3 mm jack)
- Master control
- LED indicators for power, level, clip and fault
- (19") 48.3 cm rack installation 2 U
Package contents
- 1 x user manual, 1 x amplifier, 2 x holder, 4 x screw
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
240 W |
| Output power: |
120 W RMS |
| Power connection: |
Fixed power supply cord with safety plug |
| Frequency range: |
60 - 16000 Hz |
| S/N ratio: |
>90 dB |
| THD: |
<0,5 % at 1 kHz |
| Impedance: |
4-16 ohms; Public address systems 100V; Public address systems 70V |
| Circuitry: |
Class AB |
| Controls: |
Softstart; overheat; overload; short-circuit; DC voltage |
| Status LED: |
Level meter, power, fault, clip |
| Connections: |
Input: line via 1 x 6.3 mm jack socket (mono) mounting version
Input: line via 1 x 3-pin XLR 0,8 V
Output: line via 1 x 6.3 mm jack socket (mono) mounting version
Output: line via 1 x 3-pin XLR |
| Housing design: |
(19") 48.3 cm rack installation 2 U |
| Dimensions: |
Width: 48,3 cm
Depth: 38,5 cm
Height: 9,2 cm |
| Weight: |
5,35 kg |
| Shipping weight: |
6,75 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
18,00 × 53,00 × 44,00 cm |
