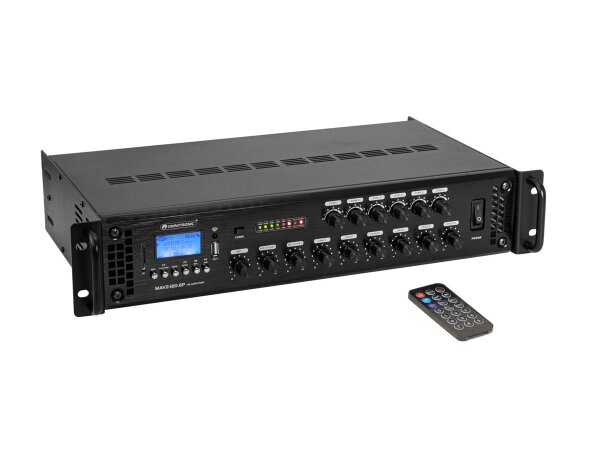

6-zone PA mono mixing amp, MP3 player & IR remote, zones switchable, 120 W
- Comfortable control of PA speakers via 6-zone technology
- 6 PA zone outputs with separate 5-step level controls
- Output for low-impedance speakers (4-16 ohms)
- Integrated Bluetooth audio streaming
- SD card slot and USB port
- Folder navigation, repeat functions and random play
- 3 microphone inputs with separate level controls
- Mic 1 with phantom power and priority circuit
- Mic 2 and 3 switchable mic/line
- 2 line inputs with separate level controls
- 1 line output
- Treble and bass and master controls for the output signal
- 5-digit LED level meter
- Chime, switchable
- The device is cooled by cooling fan
- Controlling by IR remote control
- LCD display
- (19") 48.3 cm rack installation 2 U
Package contents
- 1 x amplifier, 1 x user manual, 1 x remote control, 1 x battery, 2 x holder, 4 x screw
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
240 W |
| Output power: |
120 W RMS |
| Power connection: |
Fixed power supply cord with safety plug |
| Frequency range: |
50 - 18000 Hz |
| S/N ratio: |
>75 dB Microphone
>85 dB line |
| THD: |
<0,5 % at 1 kHz |
| Cooling: |
Cooling fan |
| Impedance: |
Public address systems 100V; 4-16 ohms; Public address systems 70V |
| Control: |
IR remote control |
| Audio player: |
USB + SD + Bluetooth |
| Zone output: |
6 adjustable zones |
| Circuitry: |
Class AB |
| Display type: |
LCD display |
| Controls: |
Current limiting; short-circuit; power on/off transient; power on/off transient; Overvoltage; short-circuit |
| Equalizer: |
Master: 1 x 2-band tone control mono |
| Status LED: |
Power, fault, level meter |
| Connections: |
Input: Microphone via 1 x 3-pin XLR
Input: Microphone via 2 x 6.3 mm plug (unbal.)
Input: line via 2 x stereo RCA 0,3 V
Output: line via 1 x stereo RCA
Output: speaker via screw terminal |
| Music format: |
MP3 |
| Number of files: |
Max. 999 |
| Available storage media: |
USB devices/SD cards max. 32GB (FAT 32) |
| Housing design: |
(19") 48.3 cm rack installation 2 U |
| Dimensions: |
Width: 48,3 cm
Depth: 32 cm
Height: 9,2 cm |
| Weight: |
5,70 kg |
| Remote control |
| Battery: |
1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Shipping weight: |
7,10 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
18,00 × 53,00 × 44,00 cm |
Product safety information
Manufacturer information:
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
97297 Waldbüttelbrunn, Deutschland
https://www.steinigke.de/support
info@steinigke.de
