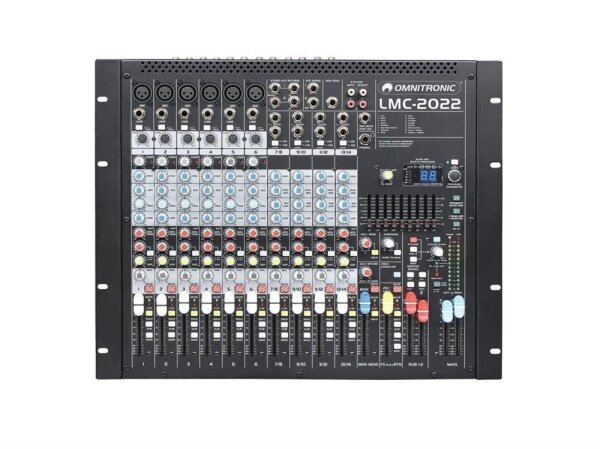

Professional audio mixer with British-style EQ, compressor, effect unit and USB interface
- 6 mono input channels with gain control, 3-way EQ with semi-parametric mid band, low cut and pan control
- 6 inserts for flexible connection of outboard equipment on each mono channel
- 4 stereo input channels with 4-way EQ, level selection and balance control
- State-of-the-art, low-noise mic preamps with 130 dB dynamic range and high headroom
- Exceptional British EQs for warm and musical sound
- Studio-grade compressors with easy one-knob functionality and control LED on each mono channel
- 24-bit DSP FX unit with 16 editable presets, tap function and storable user parameter settings
- Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
- Intelligent feedback detection system makes eliminating feedback frequencies easy
- Voice canceller filters out vocal portions for karaoke applications
- Incredible 3D stereo surround effect for an enhanced listening experience
- 9-band stereo graphic EQ with illuminated faders allows tuning monitor or main mixes
- 3 aux sends per channel: aux 1 pre-fader for monitoring, aux 2 pre/post-fader switchable for monitoring/FX applications, aux 3 post fader for internal FX
- 2 subgroups with separate outputs for added routing flexibility
- 2 stereo aux returns with flexible routing
- Clip LEDs on all channels
- Routing switches for mute, main mix, subgroup and solo/PFL on all channels
- Balanced main mix outputs with 6.3 mm jack and gold-plated XLR connectors
- Control room/phones outputs with multi-input source matrix
- CD/tape input assignable to main mix or control room/phones outputs, CD/tape output
- Precise 12-digit level meter
- BNC lamp socket
- FX mute with remote control via footswitch
- +48 V phantom power, can be switched centrally
- Incl. brackets for rack installation
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
50 W |
| Inputs: |
|
| Mic: |
XLR balanced; 2.6 kohms |
| Line (mono): |
6.3 mm jack balanced; 10 kohms, |
| Line (stereo): |
6.3 mm jack L/R balanced; 20 kohms |
| 2-Track: |
RCA L/R; 10 kohms |
| Aux Return: |
6.3 mm jack L/R balanced; 10 kohms |
| Inserts: |
6.3 mm jack unbalanced; 10 kohms |
| Outputs: |
|
| Master: |
XLR and 6.3 mm jack L/R balanced; max. +28 dBu |
| ALT 3-4: |
6.3 mm jack balanced; max. +22 dBu |
| Control Room: |
6.3 mm jack L/R unbalanced; max. +22 dBu |
| Aux Sends: |
6.3 mm jack L/R unbalanced; max. +22 dBu |
| Tape Out: |
RCA L/R; max. +22 dBu |
| Mon Send: |
6.3 mm jack L/R unbalanced; max. +22 dBu |
| Headphones: |
6.3 mm jack unbalanced; max. +19 dBu |
| Headphones impedance: |
>8 ohms |
| USB interface: |
type B, 16 bit/48 kHz |
| Frequency range: |
20-20 000 kHz |
| Distortion: |
0.05 % |
| S/N ratio: |
110 dB |
| Crosstalk: |
89 dB |
| Low Cut: |
75 Hz, 18 dB/octave |
| Phantom power: |
+48 V |
| Tone control mono channels: |
|
| Treble: |
±15 dB at 12 kHz |
| Middle: |
±15 dB at 100-800Hz |
| Bass: |
±15 dB at 80 Hz |
| Tone control stereo channels: |
|
| Treble: |
±15 dB at 12 kHz |
| Low middle: |
±15 dB at 3 kHz |
| High middle: |
±15 dB at 500 Hz |
| Bass: |
±15 dB at 80 Hz |
| Dimensions (LxWxH): |
400 x 480 x 127 mm (incl. rack brackets) |
| Weight: |
6.1 kg |
| Shipping weight: |
7.25 kg |
| Shipping weight: |
7,25 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
20,00 × 47,00 × 48,00 cm |
