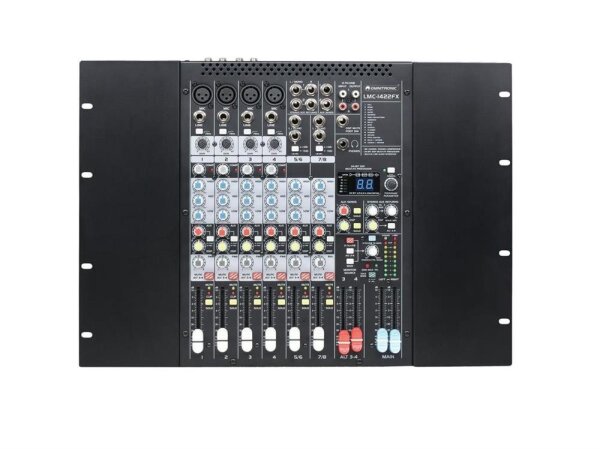

Omnitronic LMC-1422FX USB Mixing Console

287,00 €

incl. 19% VAT , (Paket)

piece

Professional audio mixer with British-style EQ, compressor, effect unit and USB interface

4 mono input channels with gain control, 3-way EQ, low cut and pan control
2 stereo input channels with 3-way EQ, level selection and balance control
State-of-the-art, low-noise mic preamps with 130 dB dynamic range and high headroom
Exceptional British EQs for warm and musical sound
Studio-grade compressors with easy one-knob functionality and control LED on each mono channel
24-bit DSP FX unit with 16 editable presets, tap function and storable user parameter settings
Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
2 aux sends per channel: aux 1 pre/post-fader switchable for monitoring/FX applications, aux 3 post fader for internal FX
ALT 3-4 stereo bus with separate faders and outputs for added routing flexibility
2 stereo aux returns with flexible routing
Clip LEDs and routing switches for mute and solo/PFL on all channels
Balanced main mix outputs with gold-plated XLR connectors
Control room/phones outputs with multi-input source matrix
CD/tape input assignable to main mix or control room/phones outputs, CD/tape output
Precise 8-digit level meter
FX mute with remote control via footswitch
+48 V phantom power, can be switched centrally
Incl. brackets for rack installation

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	50 W
Inputs:
Mic:	XLR balanced; 2.6 kohms
Line (mono):	6.3 mm jack balanced; 10 kohms,
Line (stereo):	6.3 mm jack L/R balanced; 20 kohms
2-Track:	RCA L/R; 10 kohms
Aux Return:	6.3 mm jack L/R balanced; 10 kohms
Outputs:
Master:	XLR L/R balanced; max. +28 dBu
ALT 3-4:	6.3 mm jack balanced; max. +22 dBu
Control Room:	6.3 mm jack L/R unbalanced; max. +22 dBu
Aux Sends:	6.3 mm jack L/R unbalanced; max. +22 dBu
Tape Out:	RCA L/R; max. +22 dBu
Headphones:	6.3 mm jack unbalanced; max. +19 dBu
Headphones impedance:	>8 ohms
USB interface:	type B, 16 bit/48 kHz
Frequency range:	20-20 000 kHz
Distortion:	0.05 %
S/N ratio:	110 dB
Crosstalk:	89 dB
Low Cut:	75 Hz, 18 dB/octave
Phantom power:	+48 V
Tone control mono channels:
Treble:	±15 dB at 12 kHz
Middle:	±15 dB at 100-800Hz
Bass:	±15 dB at 80 Hz
Tone control stereo channels:
Treble:	±15 dB at 12 kHz
Low middle:	±15 dB at 3 kHz
High middle:	±15 dB at 500 Hz
Bass:	±15 dB at 80 Hz
Dimensions (LxWxH):	400 x 480 x 127 mm (incl. rack brackets)
Weight:	4.5 kg
Shipping weight:	5.30 kg
