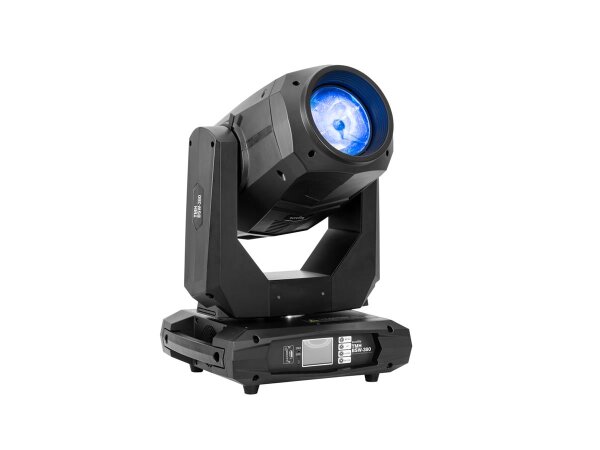

Eurolite TMH BSW-380 Moving-Head Beam/Spot/Wash

Eurolite TMH BSW-380 Moving-Head Beam/Spot/Wash

SKU: 51786850
GTIN: 4026397701142
Category: Moving-Heads Wash-Lights
Manufacturers:

1.445,00 €

incl. 19% VAT , (Paket)

Available immediately
Delivery time: 2 - 4 Workdays (DE - int. shipments may differ)

piece

Beam/spot/wash moving-head with 371W discharge lamp, color wheel, gobo wheels, prisms, frost, focus and zoom

Beam, spot and wash light in one device
Light source: Osram Sirius HRI 371W discharge lamp
Lamp already installed and adjusted from factory
Bidirectional rotating 8- and 16-facet prism with variable speed
Frost filter for softer beam
Integrated color and gobo macros
Strobe effect 1-18 Hz
Internal programs
Motorized focus
Motorized zoom with 4-35° beam angle
Dimmer (0-100%)
Positioning within 540° PAN and 230° TILT
Exact positioning via 16 bit PAN/TILT movement resolution
Exact zoom and focus setting using fine channels via DMX
Automatic position correction
Supports QuickDMX - the wireless DMX system from Eurolite
Built-in phantom-powered USB port for QuickDMX, CRMX and WDMX receivers (optional)
Battery-powered touchscreen display for mains-independent configuration
Mains input and output for power linking up to 4 units
Color wheel 13 dichroitic colors and open
Rainbow effect with adjustable speed in both directions
Switchable color change (mode 1: only full colors, mode 2: color-change at every position)
Gobo wheel with rotating gobos, 7 gobos and open
shake effect
Slot-in gobo system for exchanging gobos without tools
Gobos changeable
Gobo wheel with static gobos, 11 gobos and open
shake effect
Gobo wheel with static gobos, 5 gobos and open
shake effect
Can be operated in 22; 26 CH mode
The device is cooled by cooling fan
Controlling by stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Osram bulb included

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	490 W
IP classification:	IP20
Protection class:	Class I
Power connection:	Mains input P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	P-Con (gray), mounting version
Fuse:	5 x 20 mm, T 8 A
Lamp type:	Discharge lamp
Max. TILT movement:	Exact positioning (16 bit resolution) 230° Auto position correction (feedback)
Max. PAN movement:	Exact positioning (16 bit resolution) 540° Auto position correction (feedback)
Flash rate:	1 - 18 Hz
Equipment:	Prism 16-fold; Prism 8-fold; Prism rotating; gobo wheel with static gobos; gobo wheel with rotating gobos; Focus motor-driven; Zoom motor-driven; frost filter
Color generation:	Color wheel 13 dichroitic colors and open
Gobos:	Gobo wheel with rotating gobos, 7 gobos and open Shake effect Slot-in gobo system for exchanging gobos without tools Gobos changeable Gobo wheel with static gobos, 11 gobos and open Shake effect Gobo wheel with static gobos, 5 gobos and open Shake effect
DMX channels:	22; 26
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Cooling fan
Control:	Stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Beam angle:	4
Beam angle (1/2 peak):	4 - 35°
Housing color:	Black
Display type:	Multicolor LCD display
Use of brands:	Osram bulb included
Dimensions:	Width: 39,5 cm Depth: 30,5 cm Height: 63,0 cm
Weight:	21,75 kg
Noise classification:	Class 3 (clearly perceptible sounds)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
