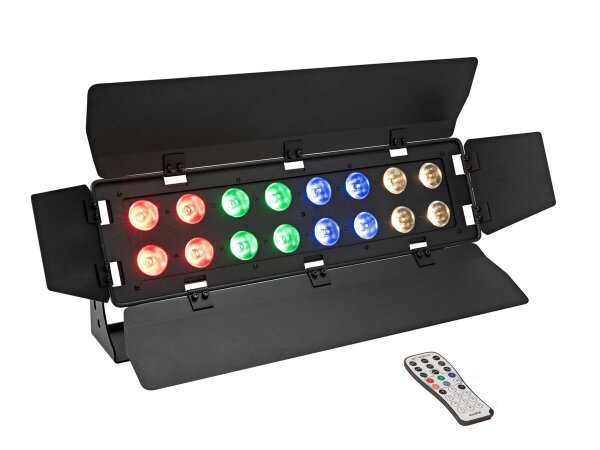

LED light effect bar with RGB/WW color mixing
- 16 powerful LEDs 7 W SMD 4in1 QCL RGB/WW (homogenous color mix)
- 9 integrated show programs
- Direct color selection for 19 preset colors
- The device is cooled by passive convection cooling
- Control via stand-alone; Sound to light via Microphone; Master/slave function; DMX; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); IR remote control
- Flicker-free
- With a beam angle of 15°
- With Mounting bracket
- 4 digit 7-segment LED display
- 4 pixel groups for dynamic running light effects
- 4 barn doors to avoid blinding the audience and for protection during transport
- Preprogrammed in Light Captain; Colorchief; EASY SHOW 2; EASY SHOW 3; Light´J
- Mains input and output for power linking up to 8 units
- For application areas such as: Wedding/gala/events; Installation; Stage; mobile djs/entertainer; small rental
- Silent operation
- Application possibility: Standing; suspended; on tripod
Package contents
- 1 x spotlight, 1 x power cord, 1 x barndoor, 1 x remote control, 1 x user manual
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
65 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output: |
P-Con (gray), mounting version |
| Fuse: |
T 1 A Fuse replaceable |
| Lamp type: |
LED lamp |
| LED: |
16 x 7 W SMD 4in1 QCL RGB/WW (homogenous color mix) |
| Flash rate: |
0 - 20 Hz |
| DMX channels: |
3; 4; 5; 6; 8; 9; 16; 24 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
Passive convection cooling |
| Control: |
Stand-alone; Sound to light via Microphone; Master/slave function; DMX; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); IR remote control |
| Preprogrammed in: |
Light Captain; Colorchief; EASY SHOW 2; EASY SHOW 3; Light´J |
| Beam angle: |
15° |
| Beam angle (1/2 peak): |
15° |
| Beam angle (1/10 peak): |
32° |
| Housing color: |
Black |
| Attachment system: |
Mounting bracket |
| Display type: |
4 digit 7-segment LED display |
| Dimensions: |
Width: 52,5 cm
Depth: 9,9 cm
Height: 18,1 cm |
| Weight: |
5,35 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Remote control |
| Battery: |
Button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Shipping weight: |
5,80 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
24,50 × 55,50 × 16,00 cm |
Product safety information
Manufacturer information:
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
97297 Waldbüttelbrunn, Deutschland
https://www.steinigke.de/support
info@steinigke.de
