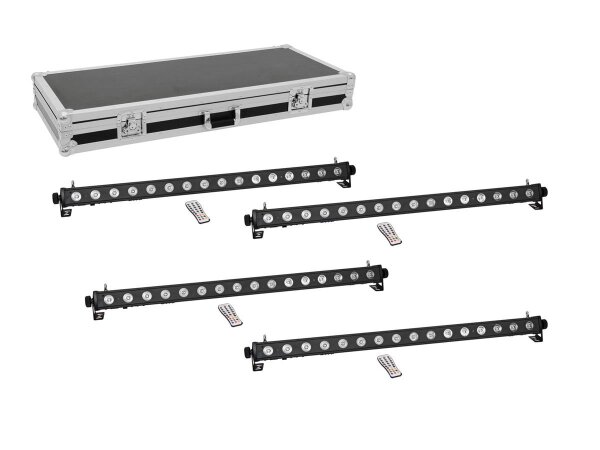

Eurolite LED PIX-16 QCL Bar
LED light effect bar with 16 x 4 W RGBW LED (4in1), incl. IR remote control
- 16 powerful LEDs 4 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
- Strobe effect
- 21 integrated show programs
- Direct color selection for 15 preset colors
- The device is cooled by passive convection cooling
- Control via stand-alone; Master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Sound to light via Microphone; IR remote control
- Preprogrammed in Light´J; Light Captain
- Flicker-free
- With a beam angle of 15°
- With Mounting bracket
- 4 digit 7-segment LED display
- Mains input and output for power linking up to 8 units
Package contents
- 1 x bar, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery, 2 x mounting bracket, 2 x screw, 2 x washer
Roadinger Flightcase EC-B252 4x LED BAR-252 RGB
Practical flightcase for 4 x LED BAR-252 RGB
- High-quality workmanship with birch multiplex 7 mm, black, laminated
- Interior with foam padding
- Aluminum profile frames 30mm with rounded edges
- Rugged carrying handle
- 3 chrome tip-over locks
- 2 high-quality butterfly locks
- For further information about this product, please refer to the Data Sheet under "Downloads"
| Weight: |
22,98 kg |
| Eurolite LED PIX-16 QCL Bar |
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
70 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output: |
P-Con (gray), mounting version |
| Fuse: |
F 1 A Fuse replaceable |
| Lamp type: |
LED lamp |
| LED: |
16 x 4 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix) |
| DMX channels: |
3; 4; 11; 21-1; 21-2; 64 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
Passive convection cooling |
| Control: |
Stand-alone; Master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Sound to light via Microphone; IR remote control |
| Preprogrammed in: |
Light´J; Light Captain |
| Beam angle: |
15° |
| Beam angle (1/2 peak): |
15° |
| Beam angle (1/10 peak): |
30° |
| Housing color: |
Black |
| Attachment system: |
2x Mounting bracket |
| Display type: |
4 digit 7-segment LED display |
| Dimensions: |
Length: 1,08 m
Width: 6,5 cm
Height: 8,5 cm |
| Weight: |
2,39 kg |
| Remote control |
| Battery: |
1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Roadinger Flightcase EC-B252 4x LED BAR-252 RGB |
| Maximum load: |
25 kg |
| Aluminum profile frames: |
30 mm |
| Carrying handle: |
1 pc/pcs |
| Stop hinge: |
3 pc/pcs |
| Lock: |
Butterfly lock: 2 pc/pcs |
| Material: |
Birch multiplex, 7 mm |
| Color: |
Black, laminated; dark brown, laminated |
| Inside dimensions: |
1,08 m x 44 cm x 7,5 cm |
| Device compartment: |
1,08 m x 6,5 cm x 7,5 cm |
| Dimensions: |
Width: 1,17 m
Depth: 48 cm
Height: 17 cm |
| Weight: |
10,90 kg |
| Shipping weight: |
22,98 kg
|
Product safety information
Manufacturer information:
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
97297 Waldbüttelbrunn, Deutschland
https://www.steinigke.de/support
