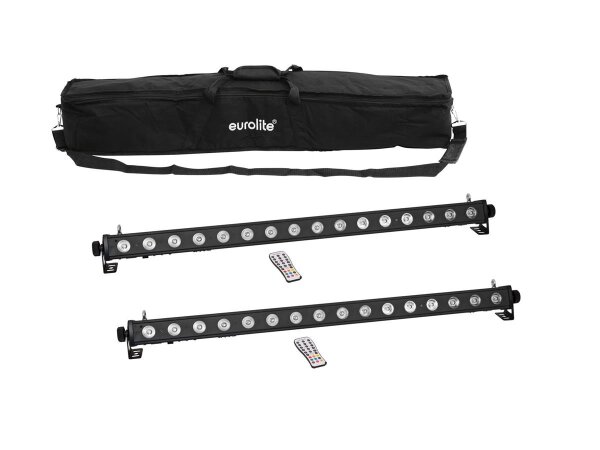

Eurolite LED PIX-16 QCL Bar
LED light effect bar with 16 x 4 W RGBW LED (4in1), incl. IR remote control
- 16 powerful LEDs 4 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
- Strobe effect
- 21 integrated show programs
- Direct color selection for 15 preset colors
- The device is cooled by passive convection cooling
- Control via stand-alone; Master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Sound to light via Microphone; IR remote control
- Preprogrammed in Light´J; Light Captain
- Flicker-free
- With a beam angle of 15°
- With Mounting bracket
- 4 digit 7-segment LED display
- Mains input and output for power linking up to 8 units
Package contents
- 1 x bar, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery, 2 x mounting bracket, 2 x screw, 2 x washer
Eurolite SB-12 Soft Bag
Practical black soft bag for LED bars (1 m length), adjustable divider
- Ideal for 1 or 2 LED bars with 1 meter length
- Made of easy-care nylon
- With divider
- With 2 Device compartments
- High-quality workmanship with textile , black
- Interior with foam padding
- 2 Rugged carrying handles
- 1 shoulder strap
| Weight: |
5,35 kg |
| Eurolite LED PIX-16 QCL Bar |
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
70 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output: |
P-Con (gray), mounting version |
| Fuse: |
F 1 A Fuse replaceable |
| Lamp type: |
LED lamp |
| LED: |
16 x 4 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix) |
| DMX channels: |
3; 4; 11; 21-1; 21-2; 64 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
Passive convection cooling |
| Control: |
Stand-alone; Master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Sound to light via Microphone; IR remote control |
| Preprogrammed in: |
Light´J; Light Captain |
| Beam angle: |
15° |
| Beam angle (1/2 peak): |
15° |
| Beam angle (1/10 peak): |
30° |
| Housing color: |
Black |
| Attachment system: |
2x Mounting bracket |
| Display type: |
4 digit 7-segment LED display |
| Dimensions: |
Length: 1,08 m
Width: 6,5 cm
Height: 8,5 cm |
| Weight: |
2,39 kg |
| Remote control |
| Battery: |
1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Eurolite SB-12 Soft Bag |
| Maximum load: |
20 kg |
| Carrying handle: |
2 pc/pcs |
| Transport aid: |
1 x shoulder strap |
| Material: |
Textile |
| Color: |
Black |
| Dimensions: |
Width: 1,07 m
Depth: 17 cm
Height: 18 cm |
| Weight: |
570 g |
