51786065 Eurolite LED TMH-17 Moving Head Spot
Handy-size spotlight with 30 W LED, gobos and color wheel
- Compact lightweight
- Equipped with a 30 W COB LED
- 9 or 11 DMX channels selectable
- 7 brilliant, dichroic colors plus white
- Rainbow effect with adjustable speed
- Gobo wheel with 7 static gobos plus open
- Electronic dimmer
- Strobe effect with adjustable speed
- Internal programs
- Sound-control via built-in microphone; sensitivity adjustable
- Manual focus
- Exact positioning via 16 bit PAN/TILT movement resolution
- Positioning within 540° PAN and 200° TILT
- DMX-controlled operation or stand-alone operation with Master/Slave function
- Control board with 4-digit LED display for adjusting the DMX-starting address, PAN/TILT Reverse, Program, Reset
- Switch-mode power supply for operation between 100 and 240 volts
- DMX control via every standard DMX controller
- Case color: Black
- Effect: Gobo effect; Single Beam
- Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
- Control: Stand-alone; DMX
- LED: 1 x COB (chip-on-board) 30 W Color wheel

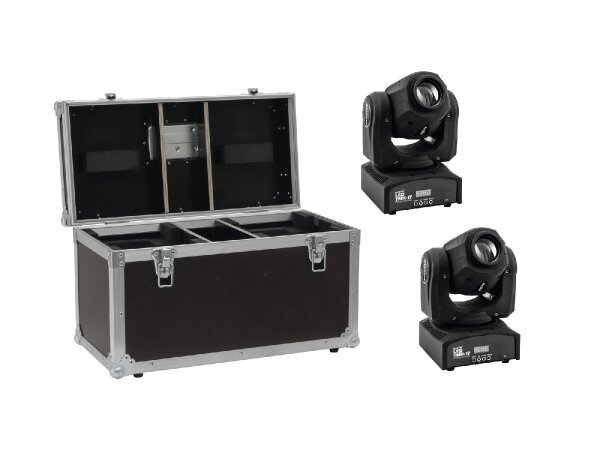

31005139 Roadinger Flightcase 2x LED TMH-17
PRO flightcase for 2 x Eurolite LED TMH-17
- Suitable for 2 devices
- Additional accessory compartment
- Interior upholstered with foam
- High-quality workmanship with 7 mm multiplex birch wood, dark brown laminated
- Aluminum profile frames with rounded corners
- Three-leg steel ball corners
- 2 tip-over locks
- 2 large chrome spring locks
- 1 hinged, chrome case handle
- Made in Europe
| 51786065 Eurolite LED TMH-17 Moving Head Spot |
| Power supply: |
100-240 V AC, 50/60 Hz |
| DMX channels: |
9/11 |
| DMX connection: |
3-pin XLR |
| Sound-control: |
via built-in microphone |
| Color-wheel: |
7 colors and open |
| Static gobo wheel: |
7 gobos and open |
| LED number: |
1 |
| LED type: |
30 W, white |
| Beam angle: |
12° |
| Maximum PAN-movement: |
540° |
| Maximum TILT-movement: |
200° |
| Dimensions (L x W x H): |
145 x 170 x 240 mm |
| Ecodesign regulation: |
Yes |
| Special product: |
Not designed for household room illumination |
| Purpose: |
Show effect lighting |
| Weight: |
2,65 kg |
| Lamp type: |
LED lamp |
| Cooling fan: |
Yes |
| IP classification: |
IP20 |
| Power consumption: |
50 W |
| Beam angle: |
12° |
| Height: |
24 cm |
| Depth: |
14,5 cm |
| Width: |
17 cm |
| Max. PAN movement: |
Exact positioning (16 bit resolution) 540° |
| Max. TILT movement: |
Exact positioning (16 bit resolution) 200° |
| Equipment: |
Gobos static |
| Power connection: |
Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) |
| DMX channels: |
9; 11 |
| LED: |
1 x COB (chip-on-board) 30 W Color wheel |
| Power supply: |
110-240 V AC, 50/60 Hz |
| 31005139 Roadinger Flightcase 2x LED TMH-17 |
| Strength: |
7 mm |
| Outside dimensions (W x D x H): |
515 x 255 x 310 mm |
| Compartment dimensions (W x D x H): |
190 x 225 x 210 mm |
| Accessory compartment (W x D x H): |
90 x 225 x 220 mm |
| Weight: |
6 kg |
| Maximum load: |
25 kg |
| Width: |
51,5 cm |
| Color: |
Dark brown laminated |
| Weight: |
6,10 kg |
| Depth: |
25,5 cm |
| Height: |
31 cm |
| Material: |
Birch multiplex 7 mm |
| Shipping weight: |
12,83 kg
|
