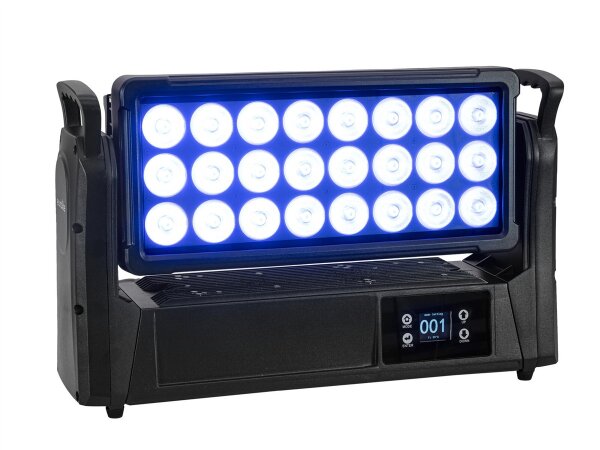

This fixture is a true all-rounder. Its weatherproof housing with an IP65 rating features a motorized tilt range of up to 210°.The light source consists of 24 powerful 40-watt LEDs with RGBL color mixing. This allows not only for intense colors but also for particularly clean orange and yellow tones, as well as high-quality white light. Each LED can be controlled individually and, with an extremely narrow 2° beam angle, produces precise beam effects and impressive light matrices.The name "Multiflood" comes from a special feature: in front of the LEDs is an electronically controlled frost filter that can be adjusted continuously. This allows the narrow beam to be transformed smoothly into a wide wash: turning a beam fixture into a washlight in an instant.Whether used for beam effects in haze, as uplighting with a medium beam angle, or as a wide floodlight, this fixture covers a wide range of applications. Thanks to its motorized tilt and electronic frost, it can quickly adapt from one task to another.
Motorized tiltable outdoor spotlight (IP65) with stepless electronic frost for beam, wash, and pixel effects
- With a beam angle of 2° - 35° frost filter
- Suitable for outdoor use IP65
- Wash effect; beam effect; matrix effect
- 24 LEDs 40 W SMD 5060 4in1 RGBL (homogenous color mix)
LEDs controlled separately
- Good color rendering index (CRI)
- Variable color temperature 2800 K - 8100 K
- Flicker-free
- Positioning within 210° TILT
- Exact 16 bit resolution at Dimmer, color
- Control via DMX; stand-alone; master/slave function; RDM
- Dimmer electronic; color blend stepless; color macros; Motion macros adjustable speed; foreground color adjustable; background color adjustable; frost filter electronic stepless
- 52 integrated show programs
- Direct color temperature selection for 33 preset values
- With omega bracket
- Multicolor TFT display
- Mains input and output for power linking up to 8 units
- With pressure compensation membrane
- The device is cooled by temperature-controlled fan at the head; cooling fan at the base
- Silent operation
- For application areas such as: Clubs/dancing school; wedding/gala/events; installation; stage; theater; rental; architecture
- Application possibility: Standing; suspended
- Can be operated in 6; 7; 10; 13; 16; 28-1; 28-2; 100; 106 CH mode
Scope of delivery
- 1 x device
- 1 x user manual
- 1 x power cord
- 2 x omega bracket
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
350 W |
| IP classification: |
IP65 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via IP T-Con (M) mounting version power supply cord with safety plug (provided) |
| Cable construction: |
3 x 1.5 mm² H07RN-F |
| Power output: |
1 x IP T-Con (F) mounting version Bypass |
| Fuse: |
T 5 A fuse serviceable |
| Lamp type: |
LED lamp |
| LED type: |
24 x 40 W SMD 5060 4in1 RGBL (homogenous color mix) |
| Effective LED Power: |
Max. 105 W with single colors
Max. 250 W with color blend |
| Max. TILT movement: |
210° positioning |
| Flash rate: |
0.6 - 20 Hz |
| DMX channels: |
6; 7; 10; 13; 16; 28-1; 28-2; 100; 106 |
| DMX input: |
1 x 3-pin XLR (M) mounting version IP
1 x 5-pin XLR (M) mounting version IP |
| DMX output: |
1 x 3-pin XLR (F) mounting version IP
1 x 5-pin XLR (F) mounting version IP |
| Cooling: |
2 x temperature-controlled fan at the head
1 x cooling fan at the base |
| Control: |
DMX; stand-alone; master/slave function; RDM |
| Fixtures available for: |
Light Captain; Colorchief; GDTF (GrandMA3) |
| Projection: |
Flicker-free |
| PWM frequency: |
10000 Hz |
| DMX features: |
RDM For bidirectional communication over the DMX line |
| DMX fail mode: |
Blackout; hold; auto |
| Beam angle: |
2° - 35° frost filter° |
| Beam angle (1/2 peak): |
Frost filter 2 - 30° |
| Beam angle (1/10 peak): |
Frost filter 10 - 35° |
| Color temperature: |
2800K - 8100K adjustable |
| Color rendering index (CRI): |
81 Ra |
| Illuminance in Lux (lx): |
Narrow red (R) 1m: 13473 lx, 3m: 5295 lx, 6m: 1578 lx
Narrow green (G) 1m: 27854 lx, 3m: 8955 lx, 6m: 2664 lx
Narrow blue (B) 1m: 3729 lx, 3m: 1774 lx, 6m: 538 lx
Narrow lime 1m: 45989 lx, 3m: 14182 lx, 6m: 4137 lx
Narrow all 1m: 57067 lx, 3m: 18121 lx, 6m: 5324 lx
Wide red (R) 1m: 1688 lx, 3m: 216 lx, 6m: 60 lx
Wide green (G) 1m: 2514 lx, 3m: 296 lx, 6m: 81 lx
Wide blue (B) 1m: 461 lx, 3m: 56 lx, 6m: 16 lx
Wide lime 1m: 4428 lx, 3m: 524 lx, 6m: 142 lx
Wide all 1m: 5470 lx, 3m: 654 lx, 6m: 175 lx |
| Housing color: |
Black matte |
| Attachment system: |
2x omega bracket |
| Display type: |
Multicolor TFT display |
| Carrying handle: |
2 pc/pcs |
| Transport aid: |
4 x rubber feet |
| Diameter mounting holes: |
2 x Ø12mm |
| Use of brands: |
Built with SEETRONIC connector |
| Material: |
Metal, 2.5 mm, painted; plastic |
| Dimensions: |
Length: 52.8 cm
Width: 13.9 cm
Height: 32.65 cm |
| Weight: |
10.90 kg |
| Noise classification: |
Class 0 (no noise at all) depending on mode used |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Shipping weight: |
12,50 kg
|
