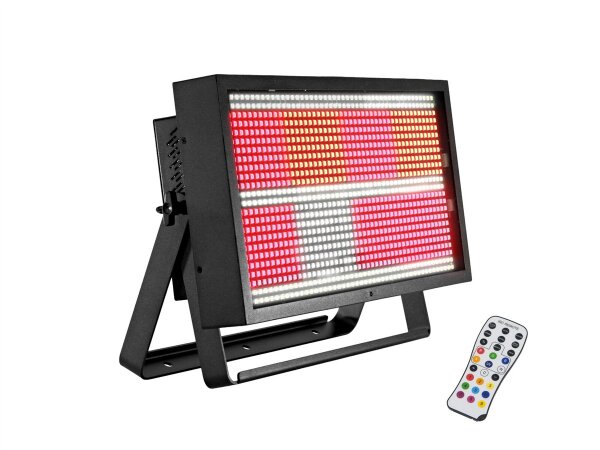

Multifunctional strobe/floodlight/blinder with RGB and cold white LEDs in a total of 11 segments
- 864 LEDs 0.2 W SMD 5050 3in1 RGB (homogenous color mix)
8 segments controlled separately
- 288 LEDs 0.5 W SMD 5050 cold white (CW)
3 segments controlled separately
- Dimmer electronic
- Strobe effect; ambient effect
- 7 integrated show programs
- Direct color selection for 18 preset colors
- Can be operated in 4; 6; 7; 9; 16; 32 CH mode
- The device is cooled by cooling fan
- Control via sound to light via microphone; stand-alone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); IR remote control; master/slave function
- Flicker-free
- With a beam angle of 120°
- With double bracket
- LCD display
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; stage; mobile djs / entertainer; rental
- Application possibility: Standing; suspended; on stand
Scope of delivery
- 1 x light effect
- 1 x user manual
- 1 x power cord
- 1 x remote control
- 1 x battery
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
200 W |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Cable construction: |
3 x 1.0 mm² H05VV-F |
| Power output: |
P-Con (gray), mounting version |
| Fuse: |
5 x 20 mm, T 3 A fuse replaceable |
| Lamp type: |
LED lamp |
| LED type: |
864 x 0.2 W SMD 5050 3in1 RGB (homogenous color mix)
288 x 0.5 W SMD 5050 cold white (CW) |
| Flash rate: |
0.5 - 20 Hz |
| DMX channels: |
4; 6; 7; 9; 16; 32 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
4 x cooling fan |
| Control: |
Sound to light via microphone; stand-alone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); IR remote control; master/slave function |
| Fixtures available for: |
Light Captain |
| Projection: |
Flicker-free |
| PWM frequency: |
7700 Hz |
| DMX fail mode: |
Blackout; hold; full on; static; auto |
| Beam angle (1/2 peak): |
120° |
| Beam angle: |
120°° |
| Lamp life: |
50000 h |
| Housing color: |
Black |
| Attachment system: |
Double bracket |
| Display type: |
LCD display |
| USB port: |
Type A |
| Diameter mounting holes: |
3 x Ø10mm |
| Material: |
Metal |
| Dimensions: |
Width: 46.7 cm
Depth: 12.0 cm
Height: 32.4 cm |
| Weight: |
6.30 kg |
| Remote control |
| Battery: |
1 x button cell 3.0 V CR2025 lithium manganese built-in |
