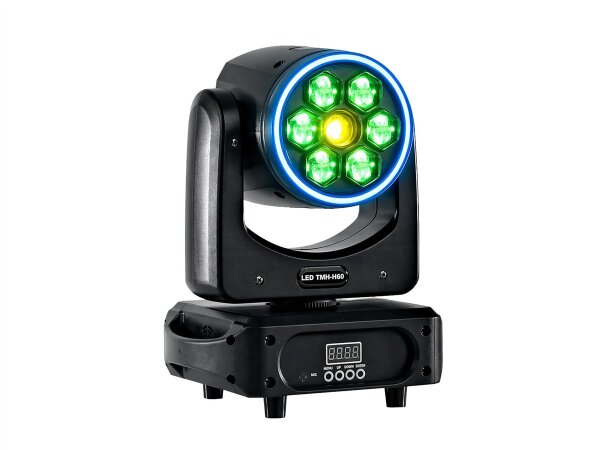

This moving head offers more than meets the eye. At its center is a 60 W LED, combined with a gobo wheel featuring seven gobos and a color wheel with eight colors. The spot has a beam angle of 14°, making it ideal for precise projections.Surrounding the central lens are six additional lenses, each equipped with a 10 W RGBW LED. These create the second effect: as the entire lens assembly rotates, the beams are continuously redirected, producing a dynamic flower effect in haze.As a third effect, an outer ring of 24 colored LEDs provides additional visual possibilities. These can create a colored frame or be used for various animation effects.This results in three distinct effects that can be freely combined to create versatile and dynamic light shows.
Compact moving head spot with color wheel, static gobo wheel, flower effect and hypno ring
- 1 LED 60 W COB (chip-on-board) cold white (CW)
- 6 LEDs 10 W SMD 5050 4in1 RGBW
- Positioning within 540° PAN, 180° TILT
- Exact positioning (16 bit resolution)
- Lens rotation
- Dimmer
- Spot effect; flower effect
- Color wheel with 7 dichroic filters plus open
half colors selectable
- Gobo wheel with static gobos, 7 gobos and open
shake effect
- Control via stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); master/slave function
- With a beam angle of 14° spot
- With omega bracket
- 4 digit 7-segment LED display
- 2 Rugged carrying handles
- Rubber feet
- Flicker-free
- The device is cooled by temperature-controlled fan at the head; low-noise cooling fan at the base
- For application areas such as: Clubs/dancing school; wedding/gala/events; party room; stage; mobile djs / entertainer; restaurants, bars and hotels
- Application possibility: Standing; suspended
- Can be operated in 16; 26 CH mode
- - spot
Scope of delivery
- 1 x moving light
- 1 x user manual
- 1 x power cord
- 1 x omega bracket
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
145 W |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Fuse: |
5 x 20 mm, T 2 A fuse replaceable |
| Lamp type: |
LED lamp |
| LED type: |
1 x 60 W COB (chip-on-board) cold white (CW)
6 x 10 W SMD 5050 4in1 RGBW
24 x 0.2 W SMD 5050 3in1 RGB (homogenous color mix) |
| Max. TILT movement: |
180° exact positioning (16 bit resolution) |
| Max. PAN movement: |
540° exact positioning (16 bit resolution) |
| Flash rate: |
1.5 - 17 Hz |
| Equipment: |
Lens rotation |
| Color generation: |
Color wheel with 7 dichroic filters plus open
Half colors selectable |
| Gobos: |
Gobo wheel with static gobos, 7 gobos and open
Shake effect |
| DMX channels: |
16; 26 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
Temperature-controlled fan at the head
Low-noise cooling fan at the base |
| Control: |
Stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); master/slave function |
| Fixtures available for: |
Light´J; Light Captain; Colorchief |
| Projection: |
Flicker-free |
| PWM frequency: |
10600 Hz |
| DMX fail mode: |
Hold; blackout |
| Beam angle (1/2 peak): |
Spot 14° |
| Beam angle: |
14° spot°
- spot° |
| Beam angle (1/10 peak): |
Spot 14° |
| Housing color: |
Black |
| Attachment system: |
Omega bracket |
| Display type: |
4 digit 7-segment LED display |
| USB port: |
Type A |
| Carrying handle: |
2 pc/pcs |
| Transport aid: |
Rubber feet |
| Diameter mounting holes: |
1 x Ø11mm |
| Material: |
Plastic |
| Dimensions: |
Width: 23.0 cm
Depth: 17.5 cm
Height: 31.0 cm |
| Weight: |
4.15 kg |
| Noise classification: |
Class 2 (slight noise) |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
Product safety information
Manufacturer information:
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
97297 Waldbüttelbrunn, Deutschland
https://www.steinigke.de/support
