For this moving head, there is no such thing as bad weather. Thanks to its IP65 rating, it can withstand even heavy rain.With a zoom range from a narrow 4° to a wide 35°, it is highly versatile and can be used as a beam, spot, and, thanks to its integrated frost filter, even as a wash. Its output is powered by a 250 W LED.Inside, eight rotating gobos and eight static gobos provide a wide range of creative options, complemented by a rotating 4-facet prism for additional effects. Colors are generated using ten dichroic color filters, which can also be positioned to create split colors.

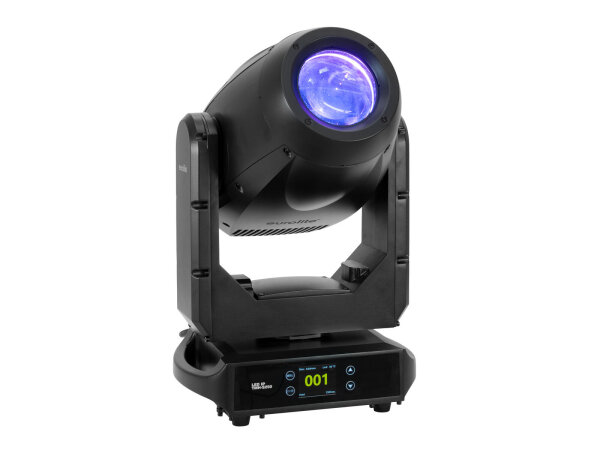

Weather-proof BSW moving head (IP65) with 250W LED, zoom, 2 gobo wheels, 4-fold prism and much more
- With a beam angle of 4° - 35°
- Can be used as a beam, spot and wash
- Gobo wheel with rotating gobos, 8 gobos and open
slot-in gobo system for easy gobo replacement
- Gobo wheel with static gobos, 8 gobos and open
- Color wheel with 10 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions
- Focus motor-driven; prism 4-fold rotating; frost filter; color wheel; gobo wheel with static gobos; gobo wheel with rotating gobos; zoom motor driven
- 1 LED 250 W COB (chip-on-board) cold white (CW)
- Suitable for outdoor use IP65
- Positioning within 540° PAN, 240° TILT
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Exact 16 bit resolution at Dimmer
- The device is cooled by low-noise cooling fan at the base; temperature-controlled fan at the head
- Control via DMX; RDM; master/slave function; stand-alone; sound to light via microphone
- Flicker-free
- RDM For bidirectional communication over the DMX line
- With omega bracket
- Multicolor LCD display
- 2 Rugged carrying handles
- Mains input and output for power linking up to 8 units
- With pressure compensation membrane
- For application areas such as: Architecture; stage; clubs/dancing school; wedding/gala/events; rental
- Application possibility: Standing; suspended
- Can be operated in 18; 19; 23 CH mode
Scope of delivery
- 1 x moving light
- 1 x user manual
- 1 x power cord
- 2 x omega bracket
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
310 W |
| IP classification: |
IP65 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| Cable construction: |
3 x 1.5 mm² H05RN-F |
| Power output: |
IP T-Con (F) mounting version |
| Fuse: |
5 x 20 mm, T 4 A fuse replaceable |
| Lamp type: |
LED lamp |
| LED type: |
1 x 250 W COB (chip-on-board) cold white (CW) |
| Max. TILT movement: |
240° exact positioning (16 bit resolution) auto position correction (feedback) |
| Max. PAN movement: |
540° exact positioning (16 bit resolution) auto position correction (feedback) |
| Flash rate: |
1 - 20 Hz |
| Equipment: |
Focus motor-driven; prism 4-fold rotating; frost filter; color wheel; gobo wheel with static gobos; gobo wheel with rotating gobos; zoom motor driven |
| Color generation: |
Color wheel with 10 dichroic filters plus open
Half colors selectable, Rainbow effect with adjustable speed in both directions |
| Gobos: |
Gobo wheel with static gobos, 8 gobos and open
Gobo wheel with rotating gobos, 8 gobos and open
Outside diameter 15.7mm
Image diameter 10mm
Slot-in gobo system for easy gobo replacement |
| DMX channels: |
18; 19; 23 |
| DMX input: |
3-pin XLR (M) mounting version IP
5-pin XLR (M) mounting version IP |
| DMX output: |
3-pin XLR (F) mounting version IP
5-pin XLR (F) mounting version IP |
| Cooling: |
1 x low-noise cooling fan at the base
5 x temperature-controlled fan at the head |
| Control: |
DMX; RDM; master/slave function; stand-alone; sound to light via microphone |
| Fixtures available for: |
Light Captain |
| Projection: |
Flicker-free |
| PWM frequency: |
4000 Hz |
| DMX features: |
RDM For bidirectional communication over the DMX line |
| DMX fail mode: |
Hold; blackout; auto |
| Beam angle: |
4° - 35°° |
| Beam angle (1/2 peak): |
4 - 35° |
| Beam angle (1/10 peak): |
4 - 35° |
| Housing color: |
Black |
| Attachment system: |
2x omega bracket |
| Display type: |
Multicolor LCD display |
| Carrying handle: |
2 pc/pcs |
| Transport aid: |
4 x rubber feet |
| Diameter mounting holes: |
2 x Ø12mm |
| Use of brands: |
Built with SEETRONIC connector |
| Material: |
Aluminum casting |
| Dimensions: |
Width: 32.0 cm
Depth: 22.5 cm
Height: 54.0 cm |
| Weight: |
15.25 kg |
| Noise classification: |
Class 2 (slight noise) |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Shipping weight: |
17,25 kg
|
