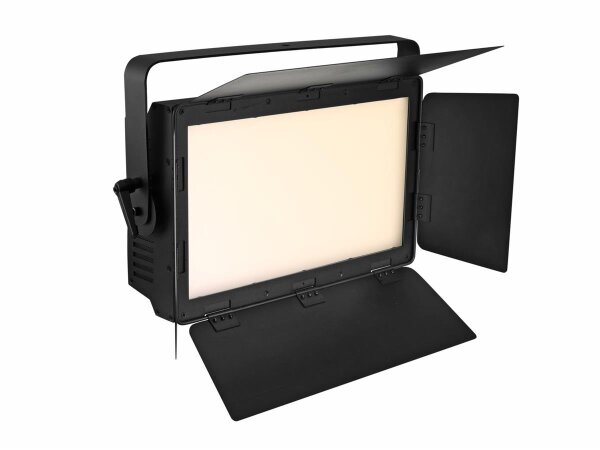

DMX-controlled surface light with 704 warm white LEDs, QuickDMX port and barn doors
- High-grade surface light with 704 super bright, white LEDs
- Ideal for photography, film, stage and trade fair lighting
- Color temperature 3200 K
- 120° beam angle
- Energy-saving, durable and environmental friendly
- Quick strobe and brightness setting via rotary dials
- Music, master/slave and DMX mode
- Strobe effect 0-20 Hz
- Variable PWM frequency (pulse-width modulation)
- Control panel with LC display for easy configuration
- Supports QuickDMX - the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX, CRMX and WDMX receivers (optional)
- 4 barn doors to avoid blinding the audience and for protection during transport
- Slim, rugged metal housing
- Comfortable carrying handle
- Swivel mounting bracket
- Mains input and output for power linking up to 8 units
- LED: 704 x SMD 2835 warm white (WW)
- Can be operated in 1; 2; 3 CH mode
- The device is cooled by passive convection
- Controlling by stand-alone; DMX; Quick select potentiometer for brightness and flash rate; Sound to light via Microphone; Master/slave function; CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); QuickDMX via USB (optional)
- Flicker-free projection
- Very high color rendering index (CRI)
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
140 W |
| IP classification: |
IP20 |
| Power connection: |
Mains input P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: |
P-Con (gray), mounting version |
| Fuse: |
T 3 A Fuse replaceable |
| Lamp type: |
LED lamp |
| LED: |
704 x SMD 2835 warm white (WW) |
| Flash rate: |
0 - 20 Hz |
| DMX channels: |
1; 2; 3 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
Passive convection |
| Control: |
Stand-alone; DMX; Quick select potentiometer for brightness and flash rate; Sound to light via Microphone; Master/slave function; CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); QuickDMX via USB (optional) |
| Beam angle: |
120° |
| Beam angle (1/2 peak): |
120° |
| Color rendering index (CRI) more than: |
90 Ra |
| Illuminance in Lux (lx): |
Warm white (WW) 1m: 3274 lx, 3m: 438 lx, 6m: 131 lx |
| Housing color: |
Black |
| Display type: |
LCD display |
| Dimensions: |
Width: 56,5 cm
Depth: 25,5 cm
Height: 42,2 cm |
| Weight: |
7,65 kg |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Shipping weight: |
8,50 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
40,00 × 57,00 × 18,50 cm |
