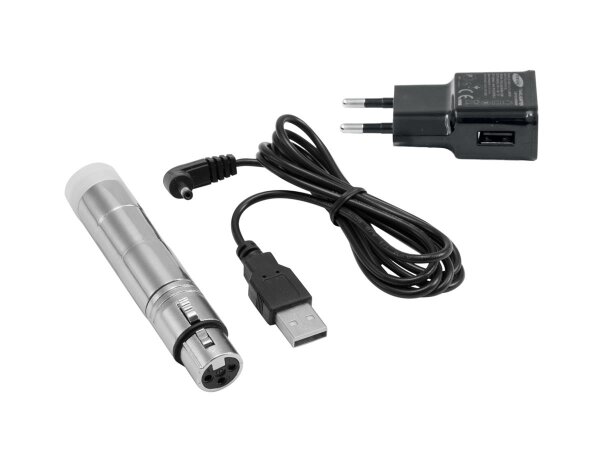

Battery-powered wireless DMX receiver 2.4 GHz
- Compact 3-pin XLR plug (female) with built-in antenna
- Internal rechargeable lithium battery with up to 20 hours operating time
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- 32-bit ARM processor for delay-free transmission
- Due to GFSK modulation with 79 channels, interference-free operation also alongside other QuickDMX receivers and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- Group mode
- Plug & Play: quick and easy setup with one control button
- Multicolored LED indication for functions
- 2.4 GHz ISM band - license-free worldwide
- Including USB charging cable and power adapter
- Controlling by QuickDMX built-in
- Use a operating range up to 400m
| Power supply: |
5 V DC |
| IP classification: |
IP20 |
| Power connection: |
Mains input Coaxial power connector (M) Power supply cord for USB A mains connection (provided) |
| Battery pack type: |
1 x lithium ion 3,7 V, 380 mAh, 1,4 Wh |
| Battery pack: |
Battery operation up to 20h |
| DMX output: |
3-pin XLR (F) |
| Control: |
QuickDMX built-in |
| Carrier frequency: |
2,4 GHz |
| Modulation: |
GFSK |
| Parallel mode: |
Max. 6 transmitter |
| Range: |
400 m |
| Color: |
Silver |
| Dimensions: |
Length: 9,50 cm
Diameter: Ø 2 cm |
| Weight: |
160 g |
| Shipping weight: |
0,21 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
5,50 × 14,50 × 11,50 cm |
