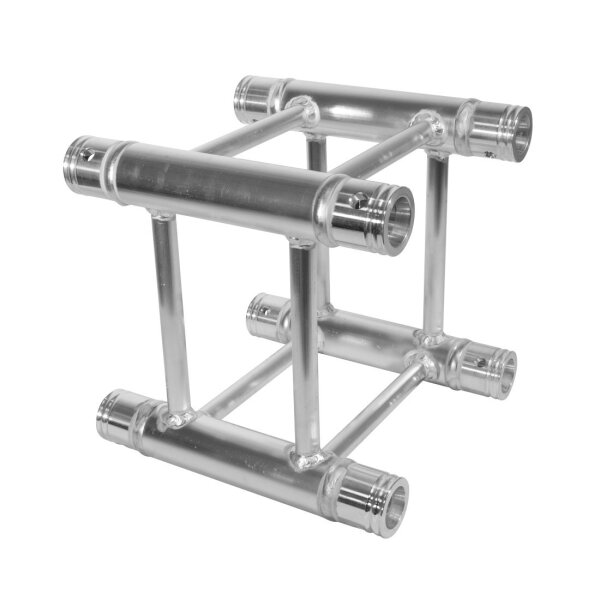

DuraTruss DT 34/3-029 - 29cm straight
The DT34 series is one of the most popular trussing systems duratruss has ever produced. The high load capacity combined with a very low weight are the features of this 29cm series with conical coupler. The advantage of the quick connector system lies in the fact that it closes force-locking the belt tube and allows rapid assembly and dismantling. The four tubes are made of 50mm aluminum tube with a wall thickness of 3mm and give this system an outstanding strength -to-weight ratio. The struts have a diameter of 20 mm with a wall thickness of 2 mm. The system also includes cones, steel pins and safety clips.
Optionally the system can be extended with various lengths, corners, T-branches, angles, and circles. Extensive accessories such as hooks, connectors, base plates, wall mounts, spacers and much more solutions will complete the product range.
The system is from European production which is compatible to the most common systems in the market and is TÜV approved.
Technical specs:
- Diametrics main pipe: 50mm
- Wall thickness: 3 mm
- Material: Aluminium EN-AW 6082 T6 (AlMgSi1)
- Dimensions braces: 20 x 2 mm
- Included in delivery: 4 cones, 8 steel pins, 8 safety clips
- Length: 290mm (without cone)
- Width: 290 mm
- Height: 290 mm
- Weight: 3,0 kg
