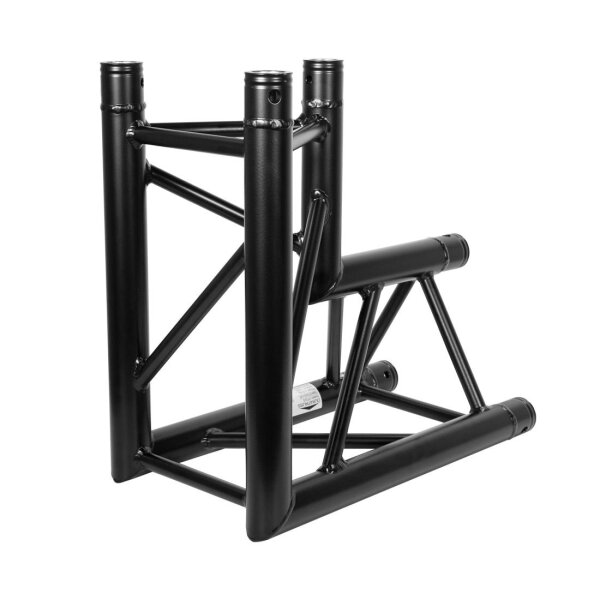

DuraTruss DT 33/2-C25-U90 black
The DT33 series is one of the most popular trussing systems Duratruss has ever produced. The load capacity combined with a very low weight are the features of this 29cm series with conical coupler. The advantage of the quick connector system lies in the fact that it closes force-locking the belt tube and allows rapid assembly and dismantling. The four tubes are made of 50mm aluminum tube with a wall thickness of 2mm and give this system an outstanding strength -to-weight ratio. The struts have a diameter of 20 mm with a wall thickness of 2 mm. The system also includes cones, steel pins and safety clips.
The matt black coated version can be extended with various standard lengths of 25cm, 50cm, 75cm, 1m, 1,5m, 2m, 2,5m, 3m, 3,5m, 4m und 5,0 meter (special lengths upon request). Our delivery programm also includes corners, T-branches, angles. Upon request, corners and circles can also be offered to you. Extensive accessories such as hooks, connectors, base plates and much more solutions will complete the product range.
The system is from European production which is compatible to the most common systems in the market and is TÜV approved.
Specifications:- Main tube diameter: 50mm
- Wall thickness main tube: 2mm
- Bracing diameter: 20mm
- Wall thickness bracing: 2mm
- Alloy: EN-AW 6082 T6 (AlMgSi1)
- Connection: conical connectors with bolt and splint
- Produced according DIN 4112, DIN 4113-1
- Dimensions: 500 x 500 x 257 mm (without cone)
- Weight: 3,9 kg
