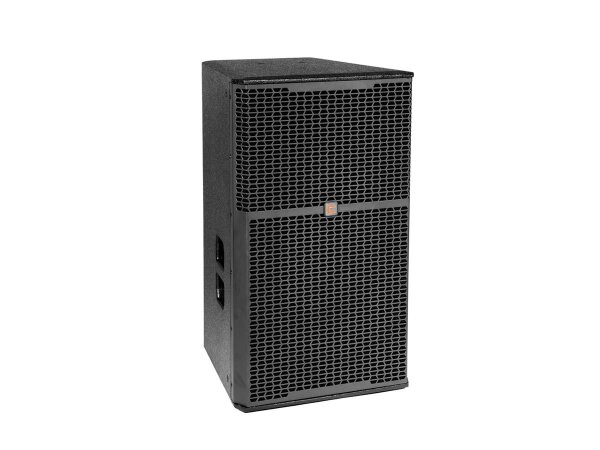

Perfectly built speaker with high-quality
- Horn 90 degree rotatable for horizontal or vertical use
- Complies with DIN 18032-3 (Ball-proof)
- Dual flange
- With rigging points
- Built with Neutrik connector
- Celto Acoustique driver
- For application areas such as: Theater; Music school; concerts/FoH's; restaurants, bars and hotels; sports centres/gyms; architecture; multi-purpose hall
Package contents
| Power: |
Rated: 800W AES
Program: 1600W
Peak: 3200W |
| Frequency range: |
38 - 22000 Hz |
| Sensitivity: |
98 dB (1W/1m) |
| Max. SPL: |
133 dB |
| Dispersion angle: |
80° x 50° rotatable horn |
| Impedance: |
8 ohms |
| Standard: |
DIN 18032-3 (Ball-proof), |
| Attachment system: |
Dual flange: Ø 35mm (0°/10°) |
| Flying points: |
16 x M8 thread |
| Connections: |
Input: speaker via 2 x speaker built-in socket (F) |
| Crossover frequency: |
Passive 1400 Hz, 12db/oct on LF
Passive 1400 Hz, 18db/oct on HF
Recommended
35 Hz, 24db/oct in full-range mode
60-140 Hz with subwoofer |
| Speaker: |
1 x woofer 13,5" with ferrit magnet
Basket material: aluminum
Voice coil lows 3,5"
Diaphragmmaterial: PEEK (H.T. polymer)
1 x Annular compression driver 1" with ferrit magnet
Voice coil annular 1,75" |
| Type of speaker: |
Compact cabinet speaker |
| Type of construction: |
Transmission line |
| Use of brands: |
Built with Neutrik connector
Celto Acoustique driver |
| Material: |
Birch multiplex |
| Color: |
Black, textured coating, painted |
| Dimensions: |
Width: 41,0 cm
Depth: 45,0 cm
Height: 72,0 cm |
| Weight: |
30,65 kg |
| Shipping weight: |
32,00 kg
|
