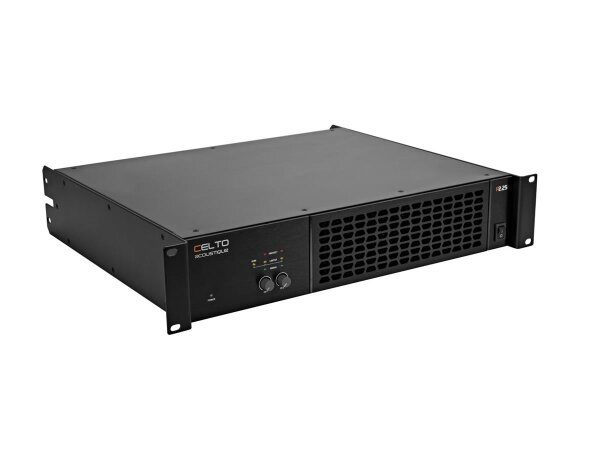

Class D performance ampfilier, 2 x 2500 W RMS (4 ohms), 2 x 1300 W RMS (8 ohms)
- (19") 48.3 cm rack installation 2 U
Package contents
- 1 x amplifier, 1 x power cord, 4 x foot
| Power supply: |
230 V AC, 50 Hz |
| Protection class: |
Protection class I |
| Output power: |
2 x 2500 W RMS (4 ohms)
2 x 1300 W RMS (8 ohms) |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Cable length: |
1,4 m detachable |
| Gain: |
34 dB |
| Circuitry: |
Class D |
| Slew rate: |
>50 V/µs |
| Damping factor: |
>800 |
| Control elements: |
Power switch, level control per channel |
| Status LED: |
Power, signal, protect, limit, SOM |
| Connections: |
Input: line via 2 x 3-pin XLR
Output: line via 2 x 3-pin XLR
Output: speaker via 2 x 4-pol SpeakON mounting version (F) |
| Color: |
Black |
| Housing design: |
(19") 48.3 cm rack installation 2 U |
| Dimensions: |
Width: 48,3 cm
Depth: 38,8 cm
Height: 8,8 cm |
| Weight: |
17,15 kg |
Product safety information
Manufacturer information:
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
97297 Waldbüttelbrunn, Deutschland
https://www.steinigke.de/support
