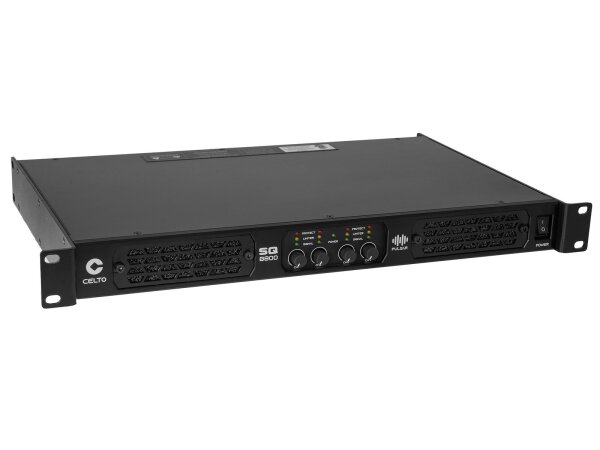

Class D multi-channel PA amplifier with SMPS, 4 x 1300 W RMS (8 ohms), 4 x 2200 W RMS (4 ohms)
- (19") 48.3 cm rack installation 1 U
- Highly efficient air flow from front to rear
- The device is cooled by temperature-controlled fan
- Built with Neutrik connector
Package contents
- 1 x amplifier, 1 x power cord, 4 x foot
| Power supply: |
100-240 V AC, 50/60 Hz |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Output power: |
4 x 1300 W RMS (8 ohms)
4 x 2200 W RMS (4 ohms)
4 x 2000 W RMS (2 ohms) |
| Power connection: |
Mains input via PowerCON (blue), mounting version |
| Cable construction: |
3 x 3 mm² |
| Cable length: |
1,5 m detachable |
| Frequency range: |
6 - 20000 Hz |
| S/N ratio: |
>107 dB |
| THD: |
<0,05 % at 1 kHz |
| Cooling: |
4 x temperature-controlled fan , air flow from front to rear |
| Impedance: |
Input: 20 kOhm , bal. |
| Gain: |
34 dB |
| Housing color: |
Black matte |
| Circuitry: |
Class D |
| Slew rate: |
>60 V/µs |
| Damping factor: |
>800 |
| Control elements: |
Power switch, mode switch (stereo/parallel/bridged), level control per channel |
| Controls: |
Short-circuit; Overvoltage; current limiting; overload; overheat |
| Status LED: |
Power, signal, limit, protect |
| Connections: |
Input: line via 4 x 3-pin XLR
Output: speaker via 4 x 4-pol SpeakON mounting version (F) |
| Input channels: |
4 x mono via XLR, channel control via rotary dial |
| Max. level: |
Input: +20 dBu, bal. |
| Use of brands: |
Built with Neutrik connector |
| Housing design: |
(19") 48.3 cm rack installation 1 U |
| Dimensions: |
Width: 48,2 cm
Depth: 28,1 cm
Height: 4,5 cm |
| Weight: |
7,00 kg |
