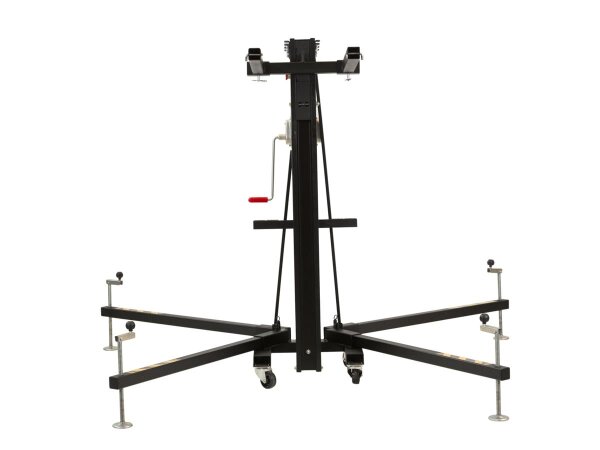

High-quality ground support for weights up to 200 kg, made in EU
- Five-part telescopic ground support
- 6 mm steel rope
- Safety bolts to lock the different sections at different heights
- Locking bolts in the base area to lock the booms
- Booms with adjustable spindle and steel plate with non-slip rubber base
- Corrosion protection through epoxy coating
- Water level to ensure a vertical position
- Earthing connection
- Transport rolls to move the lift when retracted
- AL-KO COMPAC 900 winch: Maximum load 900 kg with automatic holding brake. CE declaration of conformity in compliance with the harmonized standards DIN EN 13157, EN 12100 I and II, EC Machinery Directive 2006/42/CE
- Galvanized steel ropes 6x19+1, manufactured in compliance with the standard 13414-1:2004, tensile strength 1770N/mm2
- Material: Carbon steel S-275-J0H, manufactured in compliance with the standards EN10219 and EN10305.5
- With BGV-C1 test certificate
| Maximum carrying capacity: |
200 kg |
| Minimum load: |
25 kg |
| Height: |
Maximum: 625 cm above 5 sections
Minimum: 159 cm |
| Type (general stands): |
Truss lifter |
| Base area: |
2,2 m x 1,7 m x |
| Weight: |
108,00 kg |
| Shipping weight: |
110,00 kg
|
