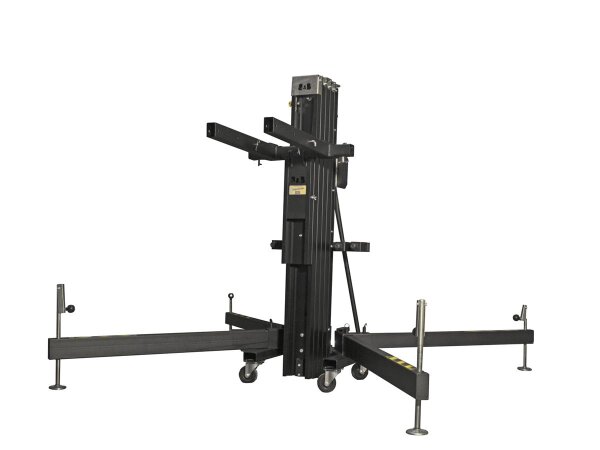

High-quality ground support for weights up to 300 kg, made in EU
- Five-part telescopic ground support
- 6 mm steel rope
- Safety bolts to lock the different sections at different heights
- Locking bolts in the base area to lock the booms
- Booms with adjustable spindle and steel plate with non-slip rubber base
- Corrosion protection through epoxy coating
- Water level to ensure a vertical position
- Earthing connection
- Transport rolls to move the lift when retracted
- AL-KO COMPAC 900 winch: Maximum load 900 kg with automatic holding brake. CE declaration of conformity in compliance with the harmonized standards DIN EN 13157, EN 12100 I and II, EC Machinery Directive 2006/42/CE
- Galvanized steel ropes 6x19+1, manufactured in compliance with the standard 13414-1:2004, tensile strength 1770N/mm2
- Material: Carbon steel S-275-J0H, manufactured in compliance with the standards EN10219 and EN10305.5
- Additional dimensions: 165x60x65 cm
- Made in Europe
| Maximum carrying capacity: |
300 kg |
| Minimum load: |
40 kg |
| Height: |
maximum: 5 m above 4 sections
minimum: 1,57 m |
| Type (general stands): |
Truss lifter |
| Material: |
Steel (powder-coated) |
| Additional dimensions: |
165x60x65 cm |
| Weight: |
131,00 kg |
| Shipping weight: |
136,00 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
167,00 × 69,00 × 62,00 cm |
