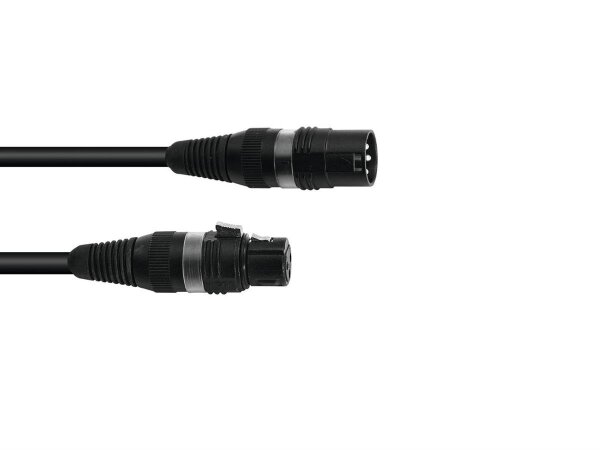

DMX cable by premium manufacturer Sommer Cable
These premade cables are the perfect choice for the transmission of the 110 ohms AES/EBU DMX512 data format.
Important note: the use of a standard microphone cable is not recommended due to data and information losses (caused by the skin effect). In the lighting domain data losses cause a total jam with signal transmissions or the control of scanner systems.
The very affordable price of this cable should make it easy to switch from a standard microphone cable to a proper AES/EBU cable. Our AES/EBU cable guarantees the error-free data transfer even over longer distances of up to 100 metres. We use the BINARY 234 AES/EBU MKII AES/EBU cable with 100 % shielding and the HICON XLR connectors.
High-quality data cable
- AES/EBU- and DMX-conformant, highly flexible
- Very good shielding through the use of copper spiral shielding and a fleece vaporized with aluminum
- Extremely robust with an especially strong jacket
- Only a little more expensive than a standard microphone cable
- For networking of scanners, lighting units, digital mixing boards, etc.
- For indoor and outdoor installation
- For connection of digital audio amplifiers, DAT-recorders, etc.
- Made in Germany
| Construction: |
(2LI2YS 0.34 mm²) (ST)CY |
| Jacket: |
PVC 7.0 mm |
|
FRNC: 5.6 mm |
| No. of inner conductors: |
2 x 0.34 mm² (AWG 22) |
| Copper strand per conductor: |
19 x 0.15 mm |
| Conductor insulation: |
Foam/skin-PE 1.50 mm |
| Shielding: |
copper spiral shielding + aluminum steamed fleece |
| Shielding factor: |
100 % |
| Temperature range: |
-25° C to +70° C |
| Fire load per m: |
0.17 kWh (520-0051 F:0.23 kWh) |
| Weight per 1 m: |
50 g |
| Packaging: |
15 m roll |
| Electrical data |
|
| Capac. cond./cond. per 1 m: |
<65 pF |
| Capac. cond./shield. per 1 m: |
>115 pF |
| Cond. resistance per 1 km: |
53 ohms |
| Insulation resist. per 1 km >1 Gohms |
|
| Surge impedance: |
110 ohms |
| Plug 1: |
HICON HI-XCF3N-BLK XLR female, black |
| Plug 2: |
HICON HI-XCM3N-BLK XLR male, black |
| Cable length: |
15 m |
| Color: |
Black |
| Plug A: |
1 x 3-pole XLR (M) |
| Plug B: |
1 x 3-pole XLR (F) |
| Shipping weight: |
0.85 kg |
| Shipping weight: |
0,85 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
5,00 × 28,00 × 33,00 cm |
