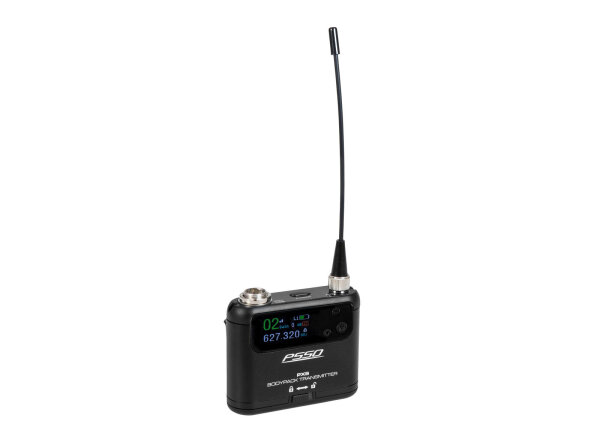

Compact bodypack transmitter with battery pack and TFT color display for PXS receivers
- Bodypack transmitter with PLL multifrequency transmitter
- Small lightweight version
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- RF output switchable
- Gain level adjustable
- Lock function for prevents undesired changes to settings
- Operating range up to 200m with line-of-sight
- Up to 28 transmitters can be operated in parallel without interference
- Multicolor TFT display
- Charge status indicator
battery pack
- Cordless, flexible and versatile
- Battery operation up to 10h
- Powered by a battery/battery pack
Scope of delivery
- 1 x transmitter
- 1 x antenna
- 1 x battery pack
- 1 x user manual
- 1 x declaration of conformity
| Type: |
Pocket transmitter |
| Power connection: |
Battery/battery pack built-in
Mains input via USB C (W) mounting version |
| Frequency range: |
30 - 19000 Hz |
| Range: |
Range up to 200m with line-of-sight |
| Frequency band: |
UHF 640 - 690 MHz |
| Switching bandwidth: |
50 MHz |
| Parallel mode: |
Max. 28 transmitter |
| RF power output: |
20 mW (LO); 30 mW (HI) |
| Housing color: |
Black |
| Display type: |
Multicolor TFT display |
| Display: |
Channel , frequency , charge status indicator , Mute |
| Control elements: |
Menu, navigation keys |
| Connections: |
Input: microphone via Mini XLR (M) 4-pin mounting version |
| Switch: |
On/off switch |
| Material: |
Metal |
| Dimensions: |
Width: 6.6 cm
Depth: 2.5 cm
Height: 15.5 cm |
| Weight: |
0.10 kg |
| Battery pack |
| Battery pack type: |
1 x lithium ion 3.7 V, 1000 mAh, 3.7 Wh |
| Battery pack: |
Battery operation up to 10h
Recharging time 3h |
| Battery: |
1 x Mignon (AA) (not included) |
