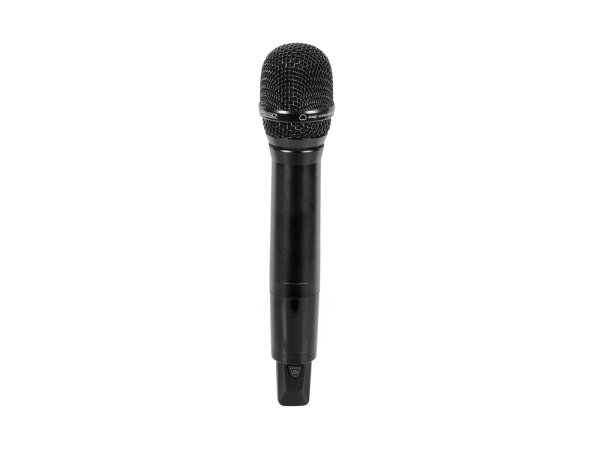

Hand-held microphone with battery pack for PXS receivers
- Dynamic hand-held microphone with UHF pilot tone technology (PLL)
- Rugged metal housing
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- Polar pattern: Cardioid
- Operating range up to 200m with line-of-sight
- Up to 28 transmitters can be operated in parallel without interference
- OLED display
- Charge status indicator
battery pack
- Cordless, flexible and versatile
- Battery operation up to 10h
- Powered by a battery/battery pack
Scope of delivery
- 1 x transmitter
- 1 x battery pack
- 1 x user manual
- 1 x declaration of conformity
| Type: |
Hand-held transmitter |
| Power connection: |
Battery/battery pack built-in
Mains input via USB C (W) mounting version |
| Capsule type: |
Dynamic
Size: Ø 2.54 mm |
| Polar pattern: |
Cardioid |
| Frequency range: |
35 - 19000 Hz |
| Range: |
Range up to 200m with line-of-sight |
| Frequency band: |
UHF 640 - 690 MHz |
| Switching bandwidth: |
50 MHz |
| Parallel mode: |
Max. 28 transmitter |
| RF power output: |
20 mW (LO); 30 mW (HI) |
| Housing color: |
Black |
| Display type: |
OLED display |
| Display: |
Frequency , charge status indicator , Mute , RF signal level |
| Control elements: |
Transmitter power switch (high-low) |
| Switch: |
On/off/mute switch |
| Material: |
Metal |
| Dimensions: |
Length: 25.5 cm
Diameter: Ø 5.0 cm |
| Weight: |
0.29 kg |
| Battery pack |
| Battery pack type: |
1 x lithium ion 3.7 V, 1000 mAh, 3.7 Wh |
| Battery pack: |
Battery operation up to 10h
Recharging time 3h |
| Battery: |
1 x Mignon (AA) (not included) |
Product safety information
Manufacturer information:
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
97297 Waldbüttelbrunn, Deutschland
https://www.steinigke.de/support
