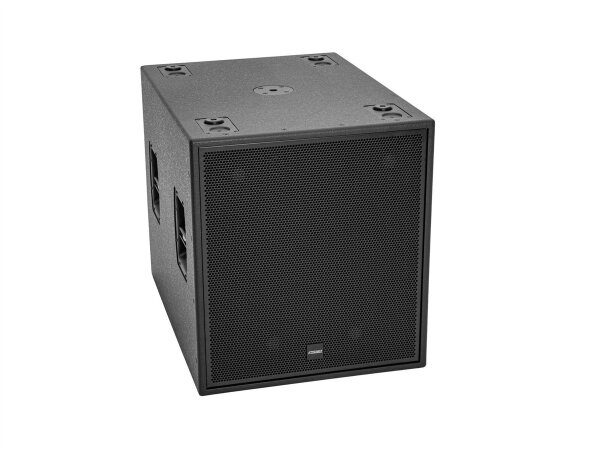

Active 18" PA bassreflex subwoofer, 1400 W RMS
- Active PA subwoofer for touring applications and permanent installations
- Versatile setup options with the KX top speakers and specially tuned presets
- Endfire and cardioid array configurations possible
- Digital signal processor
- DSP presets: 80 Hz hi cut; 90 Hz hi cut; 100 Hz hi cut; 120 Hz hi cut; End Fire 80 Hz; Inverted/Cardioid 80 Hz
- The device is cooled by temperature-controlled fan
- Black metal grille with acoustic foam
- 4 Rugged carrying handles
- Mains input and output for power linking up to 4 units
Scope of delivery
- 1 x bass
- 1 x power cord
- 1 x user manual
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
1800 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: |
1 x P-Con (gray), mounting version |
| Device fuse: |
5 x 20 mm, F 8 A fuse replaceable |
| Power: |
1400W RMS
Peak: 2800W |
| Frequency range: |
30 - 400 Hz |
| Max. SPL: |
134 dB |
| DSP: |
Digital signal processor |
| DSP presets: |
80 Hz hi cut; 90 Hz hi cut; 100 Hz hi cut; 120 Hz hi cut; End Fire 80 Hz; Inverted/Cardioid 80 Hz |
| Cooling: |
1 x temperature-controlled fan |
| Attachment system: |
M20 thread |
| Circuitry: |
Class D |
| Control elements: |
Power switch, groundlift selector, level control, DSP preset switch |
| Controls: |
Overheat; short-circuit; DC voltage; limiter |
| Status LED: |
Power, signal, clip |
| Connections: |
Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Output: line via 2 x 3-pin XLR (M) mounting version |
| Speaker: |
1 x woofer 18" with ferrit magnet
Basket material: aluminum
Conematerial: cardboard/paper
Voice coil woofer in/out wound 4" |
| Type of speaker: |
Subwoofer |
| Type of construction: |
Vented |
| Carrying handle: |
4 pc/pcs |
| Material: |
Baltic birch plywood, 18 mm |
| Color: |
Black, matte |
| Dimensions: |
Width: 56 cm
Depth: 76 cm
Height: 62.8 cm |
| Weight: |
53.25 kg |
| Power cord |
| Cable construction: |
3 x 0.75 mm² H05VV-F |
| Cable length: |
2.5 m detachable |
| Shipping weight: |
57,65 kg
|
Product safety information
Manufacturer information:
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
97297 Waldbüttelbrunn, Deutschland
https://www.steinigke.de/support
