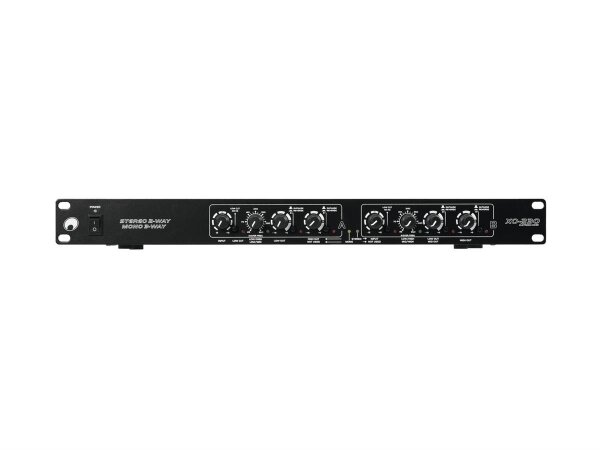

Omnitronic XO-230 Active Crossover

Item number: 10355627

Category: Eqs

79,00 €

including 19% VAT., plus shipping (Paket)

Recommended retail price: 94,01 €
(You save 15.97%, that is 15,01 €)
piece
5 piece In stock (1 - 3 workdays)

Active crossover
  • 2-way or 3-way stereo operation
  • 24 dB octave slope
  • Individual output level controls for each frequency range
  • Adjustable crossover frequency
  • Low cut switch
  • Switchable phase
  • XLR inputs and 6.3 mm jack outputs
  • Rack installation, 1 U
Power supply:230 V AC, 50 Hz
Power consumption:20 W
Slope:24 dB / octave
Operation modes:2-way stereo or 3-way mono
Input:Mono/stereo
Input impedance:10/20 kohms (unb./bal.)
Output:Mono/stereo
Output impedance:300/150 kohms (unb./bal.)
In/out connectors:XLR/6.3 mm jack
S/N ratio:>100 dB
THD:0.05%
Crosstalk:>80 dB, -3 dB
Crossover frequency range:45 Hz - 9.5 kHz
Input gain:-±12 dB
Control range:- ~ to + 6 dB
Low cut:40 Hz, -3 dB
Phase adjustment:0-180°
Dimensions (WxDxH):483 x 152 x 48 mm
Weight:1.8kg
Shipping weight:2.33 kg
Shipping weight:
2,33 Kg
Dimensions(LxWxH) ( length × width × height ):
10,00 × 53,50 × 24,00 cm
