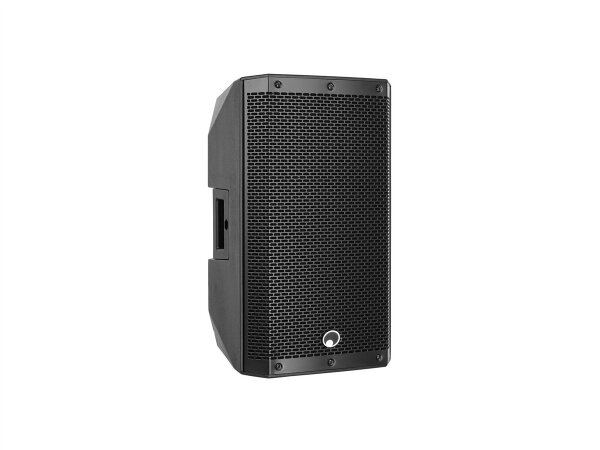

Active speaker with 10" woofer, 1" driver, 350 W RMS
- Active PA speaker system for touring applications and permanent installations
- DSP-controlled biamp amplifier (class D)
- Stereo Bluetooth link for wireless stereo operation with 2 systems linked together
- Digital signal processor; delay; Multiband Compressor; Multistep Limiter; Active Phase Correction; Delay Compensation; 3-band EQ
- DSP presets: DEFAULT; LIVE; DANCE; MONITOR; SPEECH
- Control via Bluetooth
- Bluetooth: operating range up to 10m in buildings
- Monochrome LCD display
- Black metal grille with acoustic foam
- Rugged carrying handle
- The device is cooled by passive convection cooling
- Application possibility: Standing; monitoring; on stand
- For application areas such as: Mobile use; rental; sports centres/gyms; mobile djs / entertainer
Scope of delivery
- 1 x compact cabinet speaker
- 1 x power cord
- 1 x user manual
- 1 x declaration of conformity
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
120 W |
| Output power: |
350 W RMS system
250 W RMS (8 ohms) LF
100 W RMS (8 ohms) HF |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range: |
58 - 20000 Hz |
| Max. SPL: |
122 dB |
| DSP: |
Digital signal processor; delay; Multiband Compressor; Multistep Limiter; Active Phase Correction; Delay Compensation; 3-band EQ |
| DSP presets: |
DEFAULT; LIVE; DANCE; MONITOR; SPEECH |
| Dispersion angle: |
90° x 60° |
| Cooling: |
Passive convection cooling |
| Low cut: |
FLAT, 80Hz, 100Hz, 120Hz, switchable |
| Delay: |
0 - 10 ms |
| Control: |
Bluetooth |
| Bluetooth: |
With stereo link (TWS) |
| Bluetooth device name: |
XNG-210A DSP |
| Range: |
Bluetooth: range up to 10m in buildings |
| Carrier frequency: |
2.4 GHz |
| Attachment system: |
Flange: Ø 35mm |
| Circuitry: |
Class D Biamp |
| Display type: |
Monochrome LCD display |
| Control elements: |
Power switch, encoder, level control per channel |
| Controls: |
Overheat; DC voltage; short-circuit; limiter |
| Status LED: |
Power, limit |
| Connections: |
Input: mic/line via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: Line/Hi.Z. via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: line via 1 x stereo RCA
Output: line via 1 x 3-pin XLR (M) mounting version |
| Speaker: |
1 x woofer 10" with ferrit magnet
Basket material: steel
Conematerial: cardboard/paper
Voice coil lows 2"
Compression tweeter highs 1"
Voice coil compression tweeter highs 1" |
| Type of speaker: |
Compact cabinet speaker |
| Type of construction: |
Vented |
| Carrying handle: |
1 pc/pcs |
| Material: |
PP polypropylene |
| Color: |
Black, powder-coated |
| Dimensions: |
Width: 30.0 cm
Depth: 28.6 cm
Height: 51.8 cm |
| Weight: |
10.20 kg |
| Power cord |
| Cable construction: |
3 x 0.75 mm² H05VV-F |
| Cable length: |
1.8 m detachable |
| Shipping weight: |
11,30 kg
|
Product safety information
Manufacturer information:
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
97297 Waldbüttelbrunn, Deutschland
https://www.steinigke.de/support
