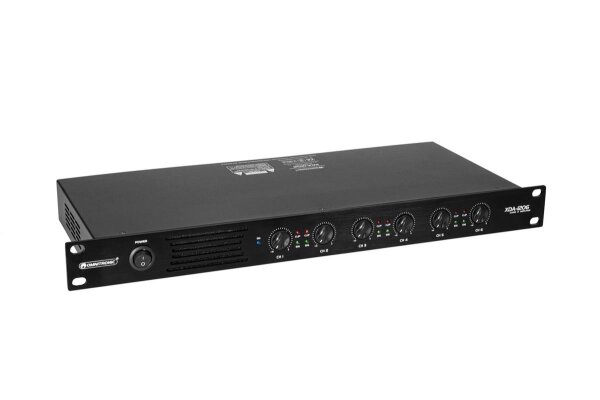

PA amplifier with SMPS, 6 x 200 W / 4 ohms, 4 x 150 W / 8 ohms
- Extremely low weight and height due to integrated switch mode power supply
- Level control per channel
- LEDs for clip and signal per channel
- Complete protection set
- (19") 48.3 cm rack installation 1 U
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
1140 W |
| Output power: |
6 x 200 W RMS (4 ohms)
6 x 150 W RMS (8 ohms) |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Frequency range: |
20 - 20000 Hz |
| S/N ratio: |
>100 dB |
| THD: |
<0,05 % at 1 kHz |
| Impedance: |
Input: 20 kOhm , bal.
Input: 10 kOhm , unbal. |
| Circuitry: |
Class D |
| Control elements: |
Power switch, level control per channel |
| Controls: |
Softstart; overheat; overload; short-circuit; DC voltage |
| Status LED: |
Power, signal, clip |
| Connections: |
Input: line via 4 x 3-pin XLR
Output: line via 4 x 3-pin XLR
Output: speaker via 4 x screw plug-in terminal
Input: 4 x screw plug-in terminal |
| Housing design: |
(19") 48.3 cm rack installation 1 U |
| Dimensions: |
Width: 48,3 cm
Depth: 19 cm
Height: 4,4 cm |
| Weight: |
4,00 kg |
| Shipping weight: |
4,30 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
13,00 × 52,00 × 29,50 cm |
