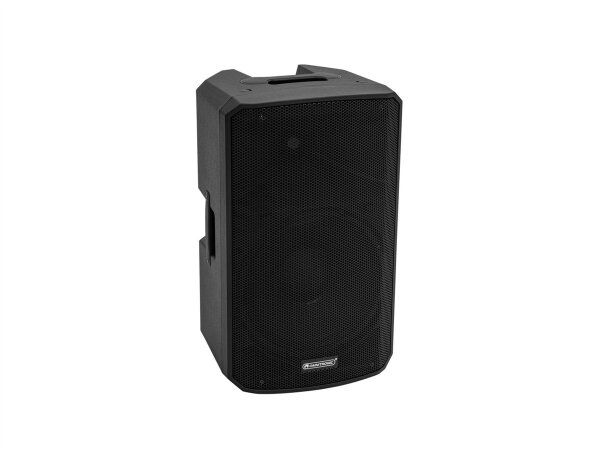

Active 2-way speaker system (12") with 140 W RMS for PA and DJ applications with audio player and Bluetooth
- 2-way bass-reflex enclosure with 30 cm woofer and 2.5 cm compression driver
- Class A/B circuitry: optimum sound and power at low weight and compact dimensions
- Stereo Bluetooth link for wireless stereo operation with 2 systems linked together
- SD card slot and USB port
- 2 mic/line inputs (XLR/6.3 mm jack) with separate level controls
- Line input, RCA
- Mixed output for linking further active speaker systems
- Master control with 2-band EQ
- Control via Bluetooth; IR remote control
- Black metal grille
- 3 Rugged carrying handles
- For application areas such as: Mobile djs / entertainer
- Application possibility: Standing; monitoring; on stand
Package contents
- 1 x compact cabinet speaker, 1 x remote control, 1 x battery, 1 x power cord, 1 x user manual, 1 x declaration of conformity
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
420 W |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Device fuse: |
5 x 20 mm, T 2 A Fuse replaceable |
| Power: |
Program: 280W
Rated: 140W RMS |
| Frequency range: |
45 - 20000 Hz |
| Max. SPL: |
120 dB |
| Control: |
Bluetooth; IR remote control |
| Bluetooth: |
Version: 5 with stereo link (TWS) |
| Bluetooth device name: |
Omnitronic |
| Audio player: |
USB + SD + Bluetooth |
| Attachment system: |
Flange: Ø 35mm |
| Control elements: |
Level control per channel, Master control, power switch, tone control, audio player |
| Status LED: |
Power, clip |
| Connections: |
Input: mic/line via 2 x 3-pin XLR
Input: mic/line via 2 x 6.3 mm plug (unbal.)
Input: line via 1 x stereo RCA
Output: line via stereo RCA |
| Input channels: |
2 x mono via XLR or jack, channel control via rotary dial
1 x stereo with Line-player switch via RCA or player, channel control via rotary dial |
| Equalizer: |
Master: 1 x 2-band tone control |
| Music format: |
MP3, WAV |
| Number of files: |
Max. 999 |
| Available storage media: |
USB devices/SD cards (FAT 32) |
| Speaker: |
1 x woofer 12" with ferrit magnet
Basket material: Steel
Conematerial: Cardboard/paper
Voice coil lows 1,5"
1 x compression tweeter highs 1" with ferrit magnet
Voice coil compression tweeter highs 1"
Horn vent 1" |
| Type of speaker: |
Compact cabinet speaker |
| Carrying handle: |
3 pc/pcs |
| Grid size: |
4 mm |
| Material: |
Plastic |
| Color: |
Black |
| Dimensions: |
Width: 35,2 cm
Depth: 34,8 cm
Height: 59 cm |
| Weight: |
12,20 kg |
| Remote control |
| Battery: |
1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Shipping weight: |
13,70 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
40,30 × 64,50 × 40,30 cm |
