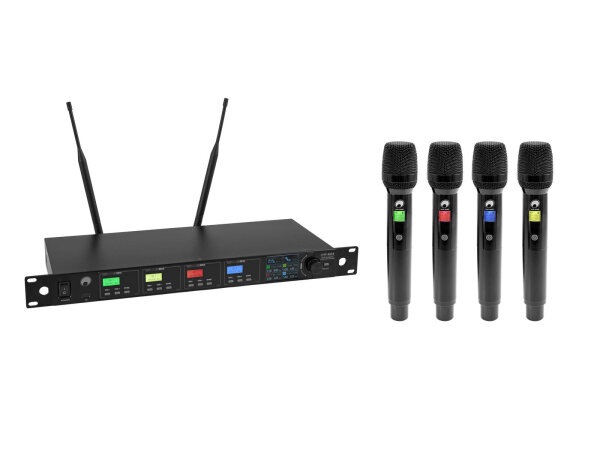

True diversity wireless system with auto scan, 7-band EQ and TFT color displays
- Multifrequency wireless receiver with high-quality true diversity reception
- Ideal for large multi-channel systems
- Operating range up to 60m with line-of-sight
- Up to 24 transmitters in 2 bands can be operated in parallel without interference
receiver
- Automatic frequency setup
- ID transmitter verification prevents incorrect use and interference from external radio transmitters
- Different user colors selectable for easy differentiation
- 7-band equalizer for sound tuning
- Multifunctional jogdial for menu settings
- Lock function for prevents undesired changes to settings
- (19") 48.3 cm rack installation 1 U
- Ultra-low latency
- Multicolor TFT display
microphone
- Polar pattern: Cardioid
- Multicolor LCD display
- Charge status indicator
Scope of delivery
- 1 x receiver
- 2 x antenna
- 1 x external mains adapter
- 1 x jack cable
- 4 x microphone
- 4 x holder
- 4 x foot
- 1 x user manual
- 1 x declaration of conformity
| Type: |
Wireless set |
| Range: |
Range up to 60m with line-of-sight |
| Frequency band: |
UHF 522 - 554 MHz |
| Switching bandwidth: |
34 MHz |
| Parallel mode: |
Max. 24 transmitter in 2 bands |
| Frequency selection: |
Frequencies automatically scannable |
| Weight: |
3.25 kg |
| Receiver |
| Power supply: |
100-240 V AC, 50/60 Hz
12V DC 1000 mA |
| Power consumption: |
6 W |
| Protection class: |
Protection class III |
| Power connection: |
Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter included |
| Number of channels: |
4 |
| Frequency range: |
50 - 16000 Hz |
| S/N ratio: |
>80 dB |
| THD: |
<0.5 % at 1 kHz |
| Diversity: |
True diversity |
| Latency: |
< 3 ms |
| Modulation: |
FM |
| Housing color: |
Black |
| Display type: |
5 x multicolor TFT display |
| Display: |
Frequency , goup , channel , AF audio level |
| Control elements: |
Level control per channel, power switch, encoder, menu |
| Connections: |
Input: antenna via 2 x BNC (F)
Output: microphone via 4 x 3-pin XLR (M) mounting version
Output: microphone via 1 x 6.3 mm plug (unbal.) |
| Equalizer: |
Graphic equalizer 7-band |
| Material: |
Metal |
| Housing design: |
(19") 48.3 cm rack installation 1 U |
| Mounting depth: |
21 cm |
| Dimensions: |
Width: 48.5 cm
Depth: 21 cm
Height: 4.4 cm |
| Weight: |
1.5 kg |
| Microphone |
| Power supply: |
3V DC 118 mA |
| Capsule type: |
Dynamic
Size: Ø 2.54 mm |
| Polar pattern: |
Cardioid |
| Battery: |
2 x Mignon (AA) (not included) |
| RF power output: |
30 mW (HI); 20 mW (LO) |
| Housing color: |
Black |
| Display type: |
Multicolor LCD display |
| Display: |
Frequency , charge status indicator , Mute , RF signal level |
| Switch: |
On/off/mute switch |
| Material: |
Metal |
| Dimensions: |
Length: 25.9 cm
Diameter: Ø 4.95 cm |
| Weight: |
0.351 kg |
