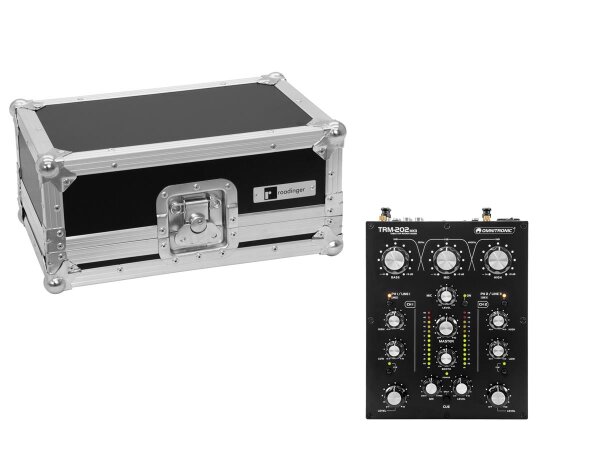

10355922 Omnitronic TRM-202MK3 2-Channel Rotary Mixer
2-channel rotary mixer with 3-band frequency isolator for DJs
- Classic rotary mixer with 2 input channels and integrated 3-band frequency isolator for DJs
- Gain control, 2-way equalizer (Highs/Lows) and phono/line switching per channel
- Dedicated boost and kill cut
- Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing
- Vintage ALPS potentiometers (Blue Velvet RK27)
- High-grade components ensure long life and excellent sound quality
- DJ microphone input with separate level control
- Prefader listening to input channels and the master output via adjustable headphones output, with cue mix/split function
- 12-digit stereo LED level meter and master level control
- Booth output with separate level control
- Inputs: 4 x line and 2 x phono (RCA L/R), DJ microphone (XLR) and headphones (jack)
- Outputs: master and booth (XLR/RCA L/R), record (stereo RCA)
31005140 Roadinger Flightcase TRM-202 MK3
PRO flightcase for one Omnitronic TRM-202 Rotary mixer MK3
- Interior and cover (not removable) upholstered with foam
- Removable lid
- High-quality workmanship with multiplex birch wood, dark brown laminated
- Aluminum profile frames with rounded edges
- Three-leg steel ball corners
- 2 high-quality butterfly locks
- 1 case handles
- Made in Europe
| Weight: |
6,43 kg |
| 10355922 Omnitronic TRM-202MK3 2-Channel Rotary Mixer |
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
20 W |
| Power connection: |
Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| Frequency range: |
Microphone 20 - 20000 Hz; line 20 - 20000 Hz; phono 40 - 18000 Hz |
| S/N ratio: |
>77 dB phono; >80 dB Microphone; >85 dB line |
| Width: |
19 cm |
| Height: |
10,7 cm |
| Depth: |
25 cm |
| Weight: |
2,75 kg |
| Gain: |
|
| Line: |
20 dB |
| Phono: |
60-75 dB |
| Mic: |
44 dB |
| Max. output level: |
22 dBu |
| THD: |
|
| Line: |
<0.03 % |
| Phono: |
<0.1 % |
| Frequency isolator: |
-~ to +9 dB |
| Lows: |
20 Hz to 300 Hz |
| Mids: |
300 Hz to 4 kHz |
| Highs: |
4 kHz to 20 kHz |
| Inputs: |
|
| LINE: |
RCA L/R |
| PHONO: |
RCA L/R |
| DJ microphone: |
XLR |
| Outputs: |
|
| MASTER: |
XLR/RCA L/R |
| BOOTH: |
XLR/RCA L/R |
| REC: |
RCA L/R |
| Headphones output: |
6.3 mm jack (min. 32 ohms) |
| 31005140 Roadinger Flightcase TRM-202 MK3 |
| Maximum load: |
25 kg |
| Color: |
Dark brown laminated |
| Width: |
24 cm |
| Height: |
18 cm |
| Depth: |
38 cm |
| Weight: |
3,20 kg |
| Shipping weight: |
6,43 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
40,00 × 61,00 × 31,00 cm |
