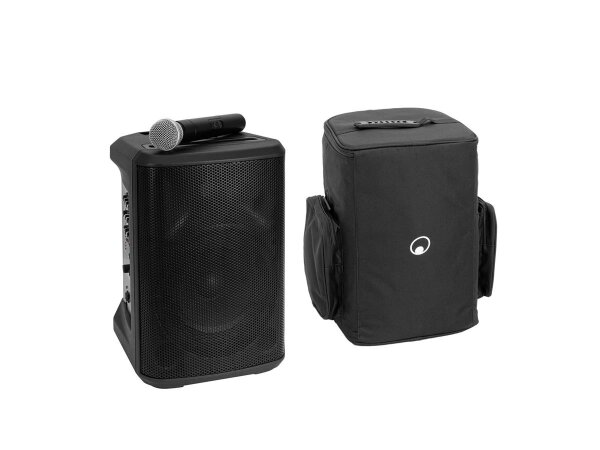

Omnitronic PORTY-8A Wireless PA System
Mobile 8" PA system with battery operation, Bluetooth, DSP and wireless microphone
- Powerful sound in an ultra-compact package (114 dB max. SPL)
- Works great as primary PA system, stage monitor and practice amp
- 4-channel power mixer
- Stereo Bluetooth link for wireless stereo operation with 2 systems linked together
- UHF receiver unit and matching wireless microphone
- UHF 863 - 865 MHz License-free and approved in Europe
- Digital signal processor 96kHz, 24 bit
- DSP presets: FLAT; DJ; LIVE
- Cordless, flexible and versatile
- Integrated automatic charging of the battery and status indicator
- Battery operation up to 6,5h 50%; battery operation up to 3,5h 100%
- Black metal grille
- Bluetooth: Operating range up to 20m
- Rugged carrying handle
- Lightweight plastic housing
- With tablet holder
- Dual flange
- Control via Bluetooth
- Application possibility: Standing; monitoring; on stand
- For application areas such as: Mobile use; mobile djs / entertainer; small rental; product presentations and lectures
Package contents
- 1 x compact cabinet speaker, 1 x microphone, 1 x power cord, 1 x user manual, 1 x declaration of conformity, 2 x battery, 1 x battery pack
Omnitronic PORTY-8A Transport Bag
Package contents
| Weight: |
10,10 kg |
| Omnitronic PORTY-8A Wireless PA System |
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
Max. 220 W |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via IEC connector (M) mounting version (provided)
Battery/battery pack |
| Cable length: |
1,5 m detachable |
| Device fuse: |
5 x 20 mm, T 3,15 A Fuse replaceable |
| Battery pack type: |
1 x lithium ion 22,2 V, 4400 mAh, 97,68 Wh |
| Battery pack: |
Battery operation up to 6,5h 50%
Battery operation up to 3,5h 100%
Recharging time 4h |
| Power: |
120W RMS |
| Number of channels: |
4 |
| Frequency range: |
45 - 18000 Hz |
| Max. SPL: |
114 dB |
| DSP: |
Digital signal processor 96kHz, 24 bit |
| DSP presets: |
FLAT; DJ; LIVE |
| Control: |
Bluetooth |
| Bluetooth: |
Version: 5 with stereo link (TWS) |
| Bluetooth device name: |
Omnitronic PORTY-8A |
| Range: |
Bluetooth: range up to 20m |
| Frequency band: |
UHF 863 - 865 MHz |
| Housing color: |
Black |
| Attachment system: |
Dual flange: Ø 35mm |
| Circuitry: |
Class D |
| Control elements: |
Power switch, Input sensitivity switch, Master control, level control per channel, Echo effect control; connect |
| Connections: |
Input: mic/line via 3 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: line via RCA (F) mounting version
Input: line via 3.5 mm jack (stereo) mounting version
Output: line via 3-pin XLR (M) mounting version |
| Channels: |
Input chanel: 3 x mono with Mic-Line-Hi.Z. switch via Combination socket (XLR/jack), channel control via Rotary dial, 2-band tone control EQ |
| Input channels: |
1 x stereo via RCA or jack plug or Bluetooth, channel control via Rotary dial |
| Speaker: |
Woofer 8" with ferrit magnet
8 x compression tweeter highs 1,35" with ferrit magnet |
| Type of speaker: |
Wireless PA system |
| Carrying handle: |
1 pc/pcs |
| Material: |
Plastic |
| Dimensions: |
Width: 29 cm
Depth: 26,3 cm
Height: 39,3 cm |
| Weight: |
8,65 kg |
| Omnitronic PORTY-8A Transport Bag |
| Color: |
Black |
| Weight: |
650 g |
| Shipping weight: |
10,10 kg
|
