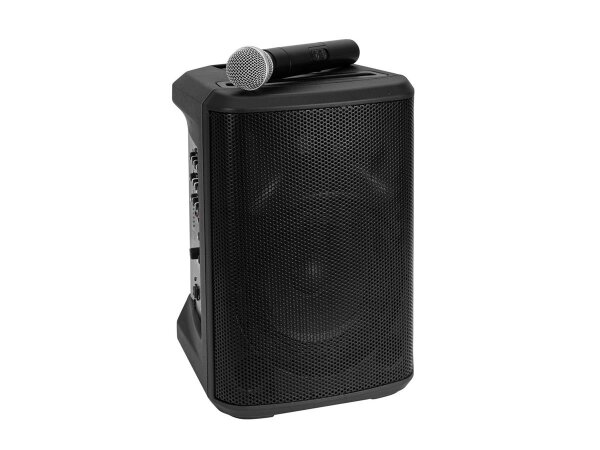

The PORTY-8A is an ultra-portable, battery-powered speaker with 120 watts output power that delivers professional, high-quality sound. The all-in-one 8" PA system offers a full-featured 4-channel mixer with DSP effects and multiple connection options for microphones, instruments and line sources, as well as a registration-free UHF wireless receiver with dynamic handheld microphone. The latest Bluetooth 5.0 technology with TWS support ensures fast and stable wireless connections to Bluetooth audio sources and links two PORTY-8A systems for stereo setups.The powerful battery provides easily over 6 hours of continuous music playback without interruption for garden parties, singers/songwriters, karaoke, trade shows, fitness instructors and presentations. The 8 kg lightweight plastic enclosure comes equipped with a double flange for tripod mounting and tilts back for monitor applications. You can even charge your personal devices via the USB charging port and place them in the built-in tablet stand!
Mobile 8" PA system with battery operation, Bluetooth, DSP and wireless microphone
- Powerful sound in an ultra-compact package (114 dB max. SPL)
- Works great as primary PA system, stage monitor and practice amp
- Full-featured 4-channel mixer
- Stereo Bluetooth link for wireless stereo operation with 2 systems linked together
- UHF receiver unit and matching wireless microphone
- UHF 863 - 865 MHz License-free and approved in Europe
- Digital signal processor 96kHz, 24 bit
- DSP presets: FLAT; DJ; LIVE
- Cordless, flexible and versatile
- Integrated automatic charging of the battery and status indicator
- Battery operation up to 6,5h 50%; battery operation up to 3,5h 100%
- Black metal grille
- Bluetooth: Operating range up to 20m
- Rugged carrying handle
- Lightweight plastic housing
- With tablet holder
- Dual flange
- Application possibility: Standing; monitoring; on tripod
- Control via Bluetooth
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
Max. 220 W |
| Power connection: |
Mains input via IEC connector (M) mounting version (provided)
Battery/battery pack |
| Battery pack type: |
1 x lithium ion 22,2 V, 4400 mAh, 97,68 Wh |
| Battery pack: |
Battery operation up to 6,5h 50%
Battery operation up to 3,5h 100%
Recharging time 4h |
| Power: |
120W RMS |
| Number of channels: |
4 |
| Frequency range: |
45 - 18000 Hz |
| Max. SPL: |
114 dB |
| DSP: |
Digital signal processor 96kHz, 24 bit |
| DSP presets: |
FLAT; DJ; LIVE |
| Control: |
Bluetooth |
| Bluetooth: |
Version: 5 with stereo link (TWS) |
| Bluetooth device name: |
PORTY-8A |
| Attachment system: |
Dual flange: Ø 35mm |
| Circuitry: |
Class D |
| Connections: |
Input: mic/line via 3 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: line via RCA (F) mounting version
Input: line via 3.5 mm jack (stereo) mounting version
Output: line via 3-pin XLR (M) mounting version |
| Channels: |
Input chanel: 3 x mono with Mic-Line-Hi.Z. switch via Combination socket (XLR/jack), channel control via Rotary dial, 2-band tone control EQ |
| Input channels: |
1 x stereo via RCA or jack plug or Bluetooth, channel control via Rotary dial |
| Frequency band: |
UHF 863 - 865 MHz |
| Speaker: |
Woofer (8") approx. 20 cm with ferrit magnet
8 x compression tweeter highs (1.35") approx. 3.5 cm with ferrit magnet |
| Type of speaker: |
Wireless PA system |
| Range: |
Bluetooth: range up to 20m |
| Carrying handle: |
1 pc/pcs |
| Material: |
Plastic |
| Dimensions: |
Width: 29 cm
Depth: 26,3 cm
Height: 39,3 cm |
| Weight: |
8,2 kg |
| Shipping weight: |
9,40 kg
|
| Dimensions(LxWxH)
( Length × Width × Height ):
|
31,50 × 45,00 × 35,00 cm |
Product safety information
Manufacturer information:
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
97297 Waldbüttelbrunn, Deutschland
https://www.steinigke.de/support
